LPJK7001AGNL Ultra Low - Profile RJ45 Jack

China LPJK7001AGNL Ultra Low - Profile RJ45 Jack supplier
LPJK7001AGNL Ultra Low - Profile RJ45 Jack supplier LPJK7001AGNL Ultra Low - Profile RJ45 Jack supplier

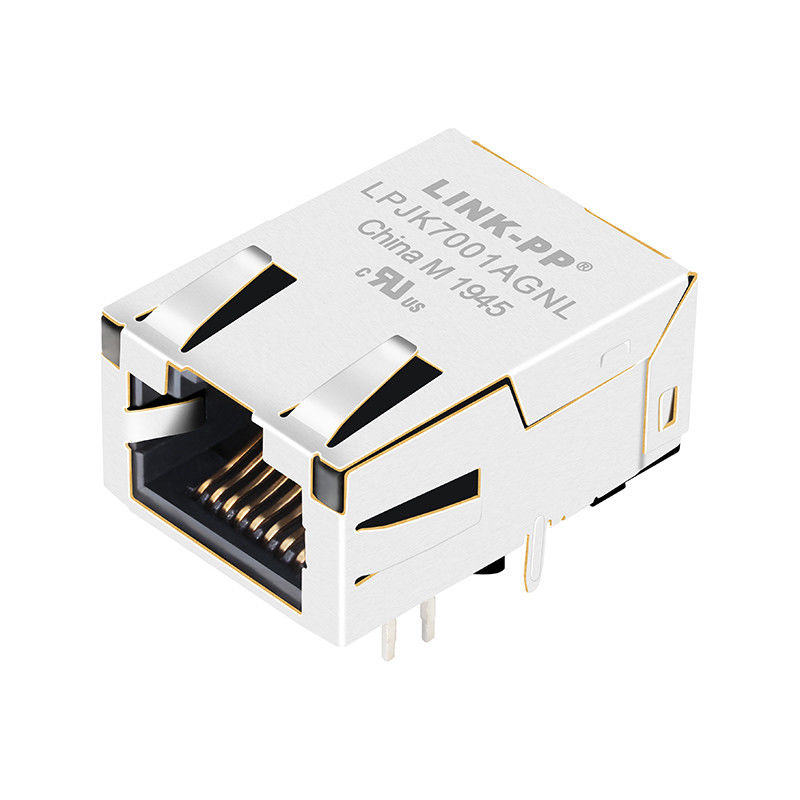

Large Image :  LPJK7001AGNL Ultra Low - Profile RJ45 Jack

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJK7001AGNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Specification: LPJK7001AGNL Part No: LPJK7001AGNL
Series: Low Profile Rj45 Magnetics Applications: 10/100Mbps Ethernet
Orientation: 90~ Angle (Right) Samples: Available

LPJK7001AGNL Ultra Low Profile Rj-45 Connector 1x 10/100Mbps Magnetic
  • Low Profile Rj45 10/100Base-TX LPJK7001AGNL
  • With Or Without LEDs Low Profile Rj45 plug
  • Low Profile Rj45 With Magnetics 10/100Mbps
  • Througn Hole 11.3mm Height
  • Low Profile Rj45 10/100 Magnetics
  • Ultra low profile Rj45 Connector

Ultra Low Profile PCB Connector Low-Profile RJ45 Jack

Description:

1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Competitive Advantage:

♦ Low-Profile RJ45 Jack
♦ 16 years production experience,
♦ 1100 staff,
♦ 100% test
♦ Flexible delivery time
LPJK7001AGNL Ultra Low - Profile RJ45 Jack
