10/100Mbps SMT LED RJ45 Connector LPJ3026ABNL

Name: 10/100Mbps SMT LED RJ45 Connector LPJ3026ABNL
Brand: LINK-PP
SKU: LPJ3026ABNL
Rating: 4.6 (133 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: SGS, UL,CE,ISO9001,Reach,RoHS

Model Number: LPJ3026ABNL

Payment & Shipping Terms

Minimum Order Quantity: 770

Price: Supportive

Packaging Details: 110PCS/Reel,7Reels=770PCS=10KG=35.5*35.5*35cm/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 smt connector, surface mount rj45 connector


Specification:	LPJ3026ABNL	Gender:	Female
Indicators:	LEDs	Mounting:	SMD
Speed:	10/100Mbps	Samples:	Available

Specification:	LPJ3026ABNL
Gender:	Female
Indicators:	LEDs
Mounting:	SMD
Speed:	10/100Mbps
Samples:	Available

10/100Mbps SMT LED RJ45 Connector LPJ3026ABNL

1X1 Port Tab-up rj45 jack With LED Indicator
Surface Mount SMT RJ45 Connector
SMD Jack Rj-45 Four 10/100BASE-TX Fast Ethernet ports

Electrical Specifications @25℃
1.Turns Ratio(±2%):
TX=1CT∶1 RX=1CT∶1CT
2.OCL:
350uH Min with 8mA bias current
3.Return Loss(dB Min @100Ω±15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
4.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
5.Insertion Loss:
1-65MHz:-1.0dB Max
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃～70℃

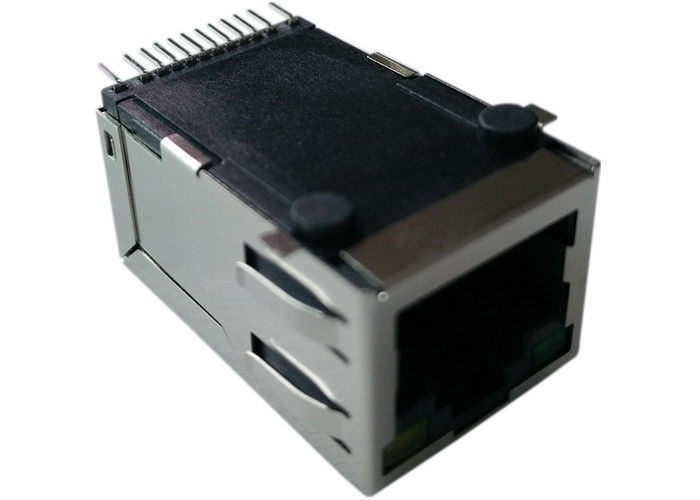

10/100Mbps SMT LED RJ45 Connector LPJ3026ABNL 0
