2x10/100 Base - TX Ethernet Multi - Port RJ45

2x10/100Base-TX Ethernet Rj-45 Port Green LEDs Indicators Latch-down

• PHY Interface With Rj45 Magnetics 10/100Mbps
• Dual Rj45 With Integrated Magnetics

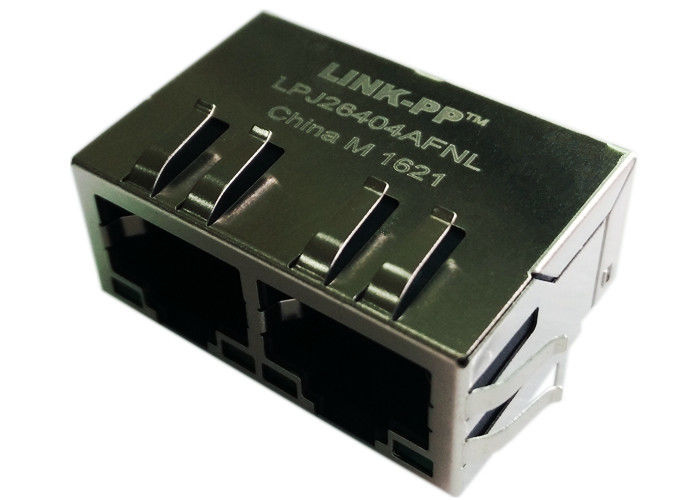

• LINK-PP LPJ26404AFNL Double Magnetics Jack

Electrical Specifications: @25℃
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.Return Loss(dB Min):
1-10MHz:-18 30MHz:-16
60-100MHz:-12
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz:-1.2dB Max
5.CMR:
1-50MHz:-30dB Min
50-130MHz:-20dB Min

6.350uH min OCL with 8mA bias current.

7.Isolation Voltage:1500V
8.Operating Temperature:-40 To +85℃

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
