Pulse PN: LP5006ANL Family: Ethernet POE+ Transformer
Interface: 100/1000Base-T Mounting: Surface Mounting
Pins: 24 Pins Samples: Free Available
Highlight:

power over ethernet transformer

,

poe magnetics

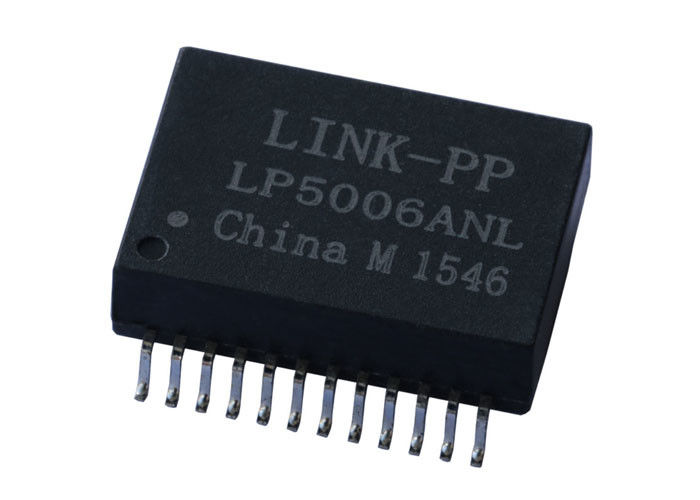

100/1000Base-T POE+ Transformer  Ethernet Isolation IEEE802.3at LP5006ANL



LP5006ANL
Trader Part Number
LP5006ANL
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
Cost-Effective POE+ Transformer
Manufacturer
LINK-PP China
Description
Single Port POE+ For Gigabyte Ethernet
Dual Port POE+ For Fast Ethernet
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
20000,000 PCS or 4 weeks

POE+ Transformer 100/1000 BASE-T TRANSFORMER MODULES



ELECTRICAL SPECIFICATIONS @25 ℃
OCL:350uH Min @ 100KHz,0.2V,8mA DC BIAS
720mA Current Capability--It is suitable for IEEE 802.3at
LL:0.5uH Max @100KHz,0.2V
Cw/w:25PF TYP @100KHz,0.2V
DCR:1.4 Ω Max
Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±2%
Polarity:2-23,5-20,8-17,11-14 In-Phase
Insertion Loss : 0.3-100MHz -1.1dB Max(TX/RX)
Return Loss : 1-30MHz -16dB Min
40MHz -16dB Min
50MHz -14.1dB Min
60MHz -12.5dB Min
80MHz -10dB Min
Cross Talk: 30MHz -35.8dB Min
60MHz -30.8dB Min
100MHz -28.0dB Min
Common Mode Rejection: 0.3-30MHz -40 dB Min(TX/RX)
60MHz -35dB Min(TX/RX)
80-100MHz -30dB Min(TX/RX)
Isolation:1500Vrms 1mA 60Sec
OPERATING TEMPERATURE: -40 ℃ TO +85 ℃ .
Storage Temperature Range: -40 ℃ TO +85 ℃
