PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer

China PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer supplier
PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer supplier PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer supplier

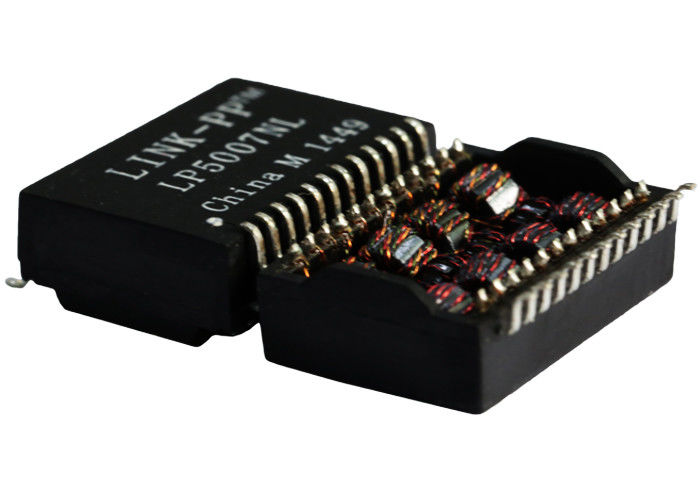

Large Image :  PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: PT61020 / PT61020L

Payment & Shipping Terms:

Minimum Order Quantity: 350/1400
Price: Supportive
Packaging Details: Tape & Teel
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Vendor: PT61020 / PT61020L Manufacturer: LP5007NL
Pin No: 24 Pins Series: Single Port GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1.5KV
Samples: Free Offer Cross Part: Available

PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer



Features

■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables


PT61020 / PT61020L Magnetic Lan 10/100/1000 BASE-T Ethernet Isolation Transformer

Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C


Mfr Package Description
ROHS COMPLIANT
REACH Compliant
Yes
EU RoHS Compliant
Yes
Status
Active More than 20 Years
Transformer Type
DATACOM TRANSFORMER
Application
LAN; 10/100/1000 BASE-T; ETHERNET
Isolation Voltage
1500.0 V
LINK-PP Cross
LP5007NL Series  Equivalent Cross
File Available
Datasheet / PDF , 3D Step / IGS
Manufacturer Series
PT61020 / PT61020L
Mounting Feature
SURFACE MOUNT
Number of Functions
4
Operating Temperature-Min
-40.0 Cel
Operating Temperature-Max
85.0 Cel
Packing Method
TAPE & REEL 350pcs/Reel
Physical Dimension
L18.15XB16.00XH6.0 (mm)
Primary Inductance
350.0 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
6.0 mm
Length
18.15 mm
Width
16.00 mm
Additional Feature
HIGHT DIMENSION INCLUDES TEMINAL ALSO
