Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

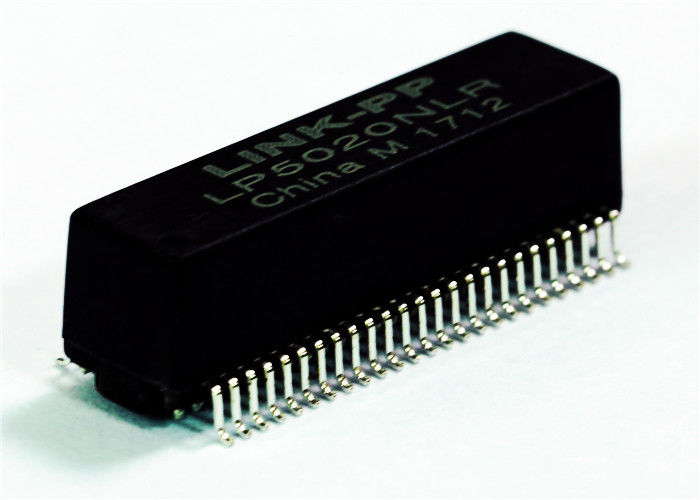

Model Number: LP5020NLR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
HX5020NL |
Cross P.N: |
LP5020NLR |
Pin No: |
50 Pins |
Series: |
Dual Port GigE Transformer |
Termination Style: |
SMD/SMT |
Isolation Voltage:: |
1500V |
Samples: |
Free Offer |
Cross Part: |
HX5020NL = LP5020NLR |
Item: |
HX5020NL |
Cross P.N: |
LP5020NLR |
Pin No: |
50 Pins |
Series: |
Dual Port GigE Transformer |
Termination Style: |
SMD/SMT |
Isolation Voltage:: |
1500V |
Samples: |
Free Offer |
Cross Part: |
HX5020NL = LP5020NLR |
Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C
