Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

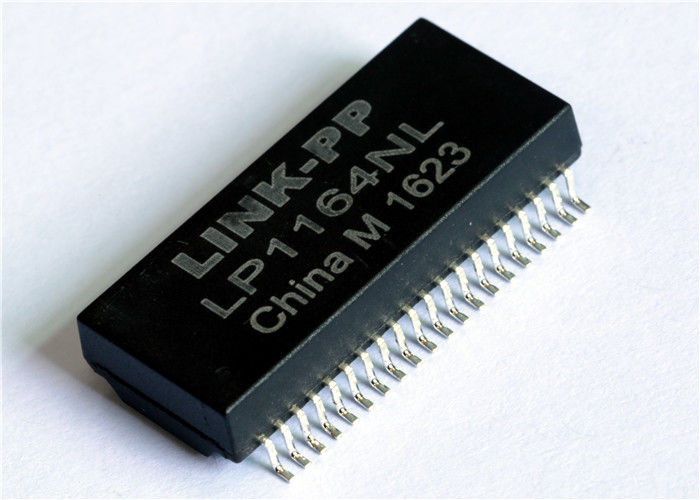

Model Number: LP1164NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
LP1164NL |
Compatible: |
PH406466 |
Interface: |
4x 10/100Base-T |
Port: |
Single SMD |
Pins: |
40 Pins |
Hipot: |
1500V |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross: |
PH406466 = LP1164NL |
PN: |
LP1164NL |
Compatible: |
PH406466 |
Interface: |
4x 10/100Base-T |
Port: |
Single SMD |
Pins: |
40 Pins |
Hipot: |
1500V |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross: |
PH406466 = LP1164NL |
|
Pin to pin PH406466 |
||||||||||||||||||||||||||||||||
|
Factory PN |
LP1164NL |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Cross References |
Equivalent to PH406466 |
|||||||||||||||||||||||||||||||
|
L/T |
Stock |
|||||||||||||||||||||||||||||||
|
Description |
SIN Magnetics 10/100 SMT |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
500000 pcs |
|||||||||||||||||||||||||||||||
Compatible PH406466 Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃～70℃./-40℃～85℃
