Equivalent to TS8019M HF 10/100 Transformer BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL

China Equivalent to TS8019M HF 10/100 Transformer BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL supplier

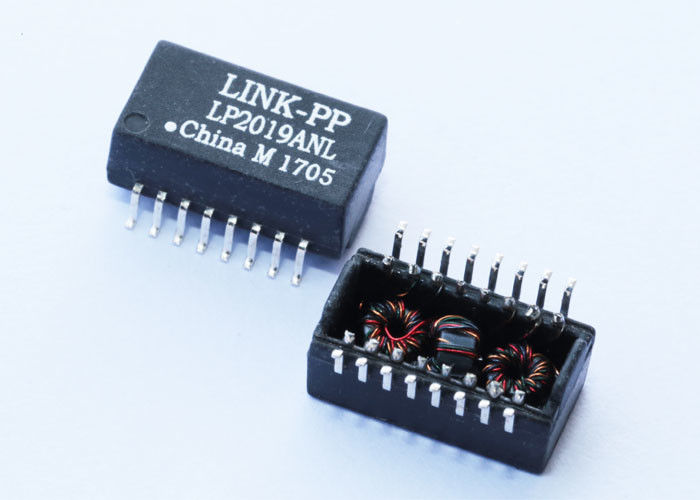

Large Image :  Equivalent to TS8019M HF 10/100 Transformer BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP2019ANL

Payment & Shipping Terms:

Minimum Order Quantity: 1500/5000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
PN: TS8019M HF Compatible: LP2019ANL
Interface: 10/100Base-T Port: Single SMD
Pins: 16 Hipot: 1500V
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Cross: HR601680 = LP1102NL

Equivalent to TS8019M HF 10/100 BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL

Pin to pin TS8019M HF

Factory PN

LP2019ANL

Price Break

Unit Price

Extended Price

1-5

A-F

-

10-50

B

-

100-500

C-1

-

1,000-2,500

Supportive

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

 Negotiable

Negotiable

100,000

 Negotiable

Negotiable

500,000

 Negotiable

Negotiable

Cross References

Alternative to TS8019M HF

L/T

Stock

Description

SIN Magnetics 10/100 SMT

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

500000 pcs



Compatible TS8019M HF Electrical Specifications @25℃

Equivalent to TS8019M HF 10/100 Transformer BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL
1.OCL: 350uH MIN
  @100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
  TX=1CT∶1CT      RX=1CT∶1CT
3.Insertion Loss:
  0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
  30MHz:-20    60MHz:-14
  80MHz:-11.5
5.Crosstalk(dB TYP):
  30MHz:-45    60MHz:-40
  100MHz:-35
6.DCMR(dB TYP):
  30MHz:-42    50MHz:-37
  100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃~70℃./-40℃~85℃

Equivalent to TS8019M HF 10/100 Transformer BASE-TX VOICE OVER IP MAGNETICS , LP2019ANL
