Home > products > POE LAN Transformer > Alternative HX6096FNL 10/100/1000TX POE Magnetics Pin to Pin Compatible LP6096ANL

Alternative HX6096FNL 10/100/1000TX POE Magnetics Pin to Pin Compatible LP6096ANL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HX6096FNL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

HX6096FNL

,

1000TX Ethernet Transformer

,

HX6096FNL PoE Magnetics

Item:
HX6096FNL PoE+ LAN Transformer
Data Rate:
1000BASE-T
Isolation Voltage:
1500 VAC
RoHS-compliant:
Yes
Mounting:
SMT
Samples:
Free Offer
Operating Temperature Range:
- 40 ℃ To + 85 ℃
Item:
HX6096FNL PoE+ LAN Transformer
Data Rate:
1000BASE-T
Isolation Voltage:
1500 VAC
RoHS-compliant:
Yes
Mounting:
SMT
Samples:
Free Offer
Operating Temperature Range:
- 40 ℃ To + 85 ℃

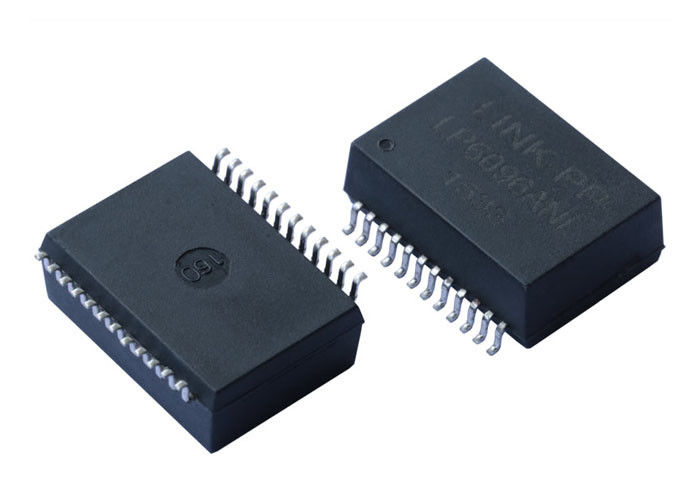

Alternative HX6096FNL 10/100/1000TX POE Magnetics Pin to Pin Compatible LP6096ANL

Single Port 1000BASE-T Ethernet Transformer Support PoE+ HX6096FNL



PoE+ LAN Transformer Description



This RoHS-compliant Ethernet Transformer is designed with precision and adherence to industry and environmental standards. It optimizes performance and security in network devices. This PoE LAN Transformer features a 1CT:1CT transmitter and 1CT:1CT receiver turns ratio for improved signal integrity. HX6096FNL Transformer operates stably over a wide temperature range of -40°C to 85°C. The Transformer Module has a moisture sensitivity level of 1 and its moisture resistance increases its durability. Constructed with a thermoset plastic case Which meets UL 94V-0 flammability safety assurance standards. All engineering changes to the HX6096FNL must be approved in advance by the design center to ensure quality control and manufacturing consistency. Peak reflow temperature of 245°C during soldering for easy integration. The LP6096ANL has a long service life and maintains its integrity even during long periods of operation, reflecting LINK-PP's commitment to sustainable development and environmental protection.



Specifications of HX6096FNL Ethernet Transformer



Product Category

Magnetic Transformers

Part Number HX6096FNL(LP6096ANL)

Speed

10/100/1000Mbps

RoHS

Yes

Turns Ratio

1CT:1CT

Inductance

350 uH

Ethernet Standards

IEEE 802.3af/at

Primary Resistance

0.3 Ohms

Mounting Style

SMT

Length

18.16 mm

Width

16.002 mm

Height

6.6 mm

Equivalent by

LP6096ANL Alternative

Operating Temperature Range

- 40 ℃ to + 85 ℃

Storage Temperature Range -50°C to +125°C



HX6096FNL Schematic datasheet

HX6096FNL Datasheet
