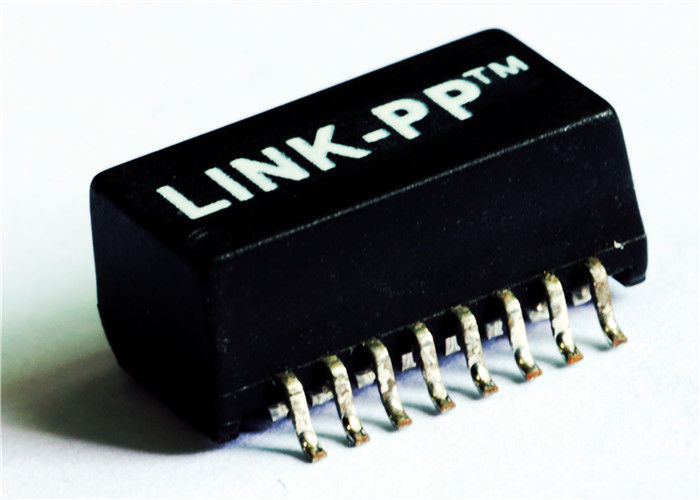

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP1102NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Spec: |
PT61017PEL |
Substitute: |
LP1102NL |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.80 Mm L X 9.30mm W |
Hipot: |
1500V |
Samples: |
Free Available |
Cross Rf: |
PT61017PEL = LP1102NL |
Spec: |
PT61017PEL |
Substitute: |
LP1102NL |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.80 Mm L X 9.30mm W |
Hipot: |
1500V |
Samples: |
Free Available |
Cross Rf: |
PT61017PEL = LP1102NL |
Features
IEEE 802.3 Ethernet compatible
Designed for AMD IC manufacturers
Fully integrated for adapter, hub and motherboard applications
RoHS compliant
Applications
LAN (Local Area Network)
Ethernet
Turns Ratio ± 5% ....................1CT*:1CT*
Inductance
Pin 1-3, 6-8 ..350 µH min. @ 100 KHz,
0.2 Vrms, 8 mA DC Bias
DCR
Pin 1-3, 6-8 ........................ 0.6 Ω max.
Pin 9-11, 14-16 ................... 1.1 Ω max.
Insertion Loss
0.3-100 MHz ................. -1.15 dB max.
Return Loss
30 MHz .............................-18 dB min.
60 MHz .............................-12 dB min.
100 MHz .............................-10 dB min.
Common Mode Rejection
30 MHz .............................-40 dB Min.
60 MHz .............................-35 dB Min.
100 MHz .............................-30 dB Min.
Crosstalk
1-60 MHz .........................-45 dB Min.
60-100 MHz .......................-35 dB Min.
Hipot
1 mA, 2 sec. ......1500 VAC (PRI-SEC)
Operating Temperature ....0 °C to +70 °C
Storage Temperature.. -25 °C to +125 °C
