Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE4713CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
LPJE4713CNL |
Part No: |
LPJE4713CNL |
Ethernet: |
Cat5,5E |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LPJE4713CNL |
Part No: |
LPJE4713CNL |
Ethernet: |
Cat5,5E |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

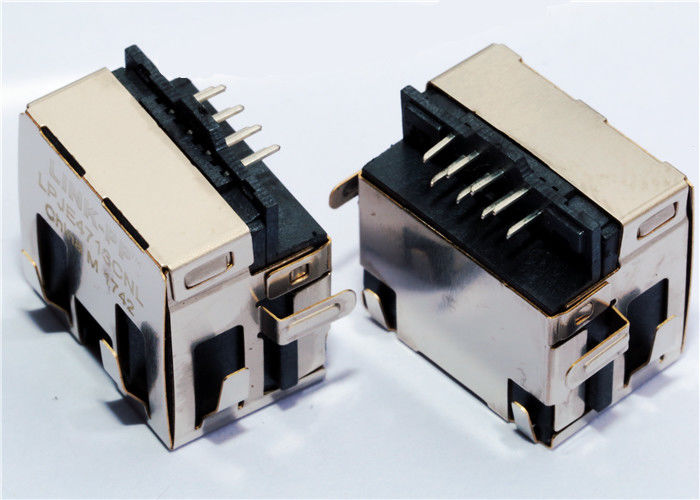

1x1 Port Rj45 Low Profile Thru-Hole Tab-UP PCB Mid mount RJ45 Female Socket.
| Shielded 8P8C MINI RJ45 Connector without Integrated Magnetics, Without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJE4713CNL |
| Application-Lan | ETHERNET(NON PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores per Port | without Magnetics |
| Diodes | NO DIODES |
| LED Option | Without LEDS |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| Shielding | Shielded |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |

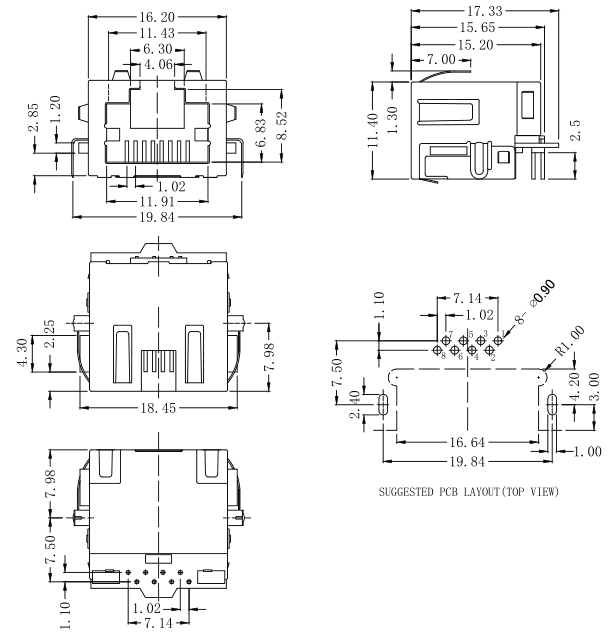

| Package Height (Inches) | 0.449 |
| Package Height (mm) | 11.40 |
| Package Length (Inches) | 0.598 |
| Package Length (mm) | 15.20 |
| Package Width (Inches) | 0.638 |
| Package Width (mm) | 16.20 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | without Magnetics |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
