Home > products > Optical Transceivers > 155Mbps SFP Transceiver Single Mode 20km Reach 1310nm Industrial Tepm

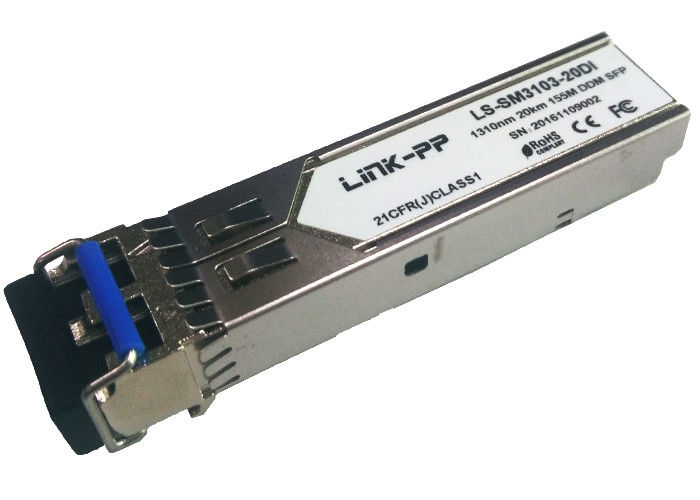

155Mbps SFP Transceiver Single Mode 20km Reach 1310nm Industrial Tepm

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: LS-SM3103-20DI

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

fiber sfp module

,

fiber optic transceiver

Specifications:
LS-SM3103-20DI
Data Rate:
155Mbps Bit Rates
Standard:
IEEE C37.94 / IEC 62843
Connector Type:
Hot-pluggable SFP Footprint
Distance:
Up To 20km For SMF Transmission
Voltage:
+3.3V
Environment:
Lead Free / RoHS Compliant
Operation Tem:
-40℃ To +85 ℃
Specifications:
LS-SM3103-20DI
Data Rate:
155Mbps Bit Rates
Standard:
IEEE C37.94 / IEC 62843
Connector Type:
Hot-pluggable SFP Footprint
Distance:
Up To 20km For SMF Transmission
Voltage:
+3.3V
Environment:
Lead Free / RoHS Compliant
Operation Tem:
-40℃ To +85 ℃
155Mbps SFP Transceiver Single Mode 20km Reach 1310nm Industrial Tepm
155Mbps SFP Transceiver, Single Mode, 20km Reach 1310nm Industrial Tepm



155Mbps SFP Transceiver, Single Mode, 20km Reach


Product Features


 Supports up to 155Mbps bit rates and Compatible with IEEE C37.94 / IEC 62843
 Hot-pluggable SFP footprint
 1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission
 Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
 Compatible with RoHS
 Single +3.3V power supply
 Real Time Digital Diagnostic Monitoring
 Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C


Applications


 155Mbps Optical systems
 Fast Ethernet
 SONET OC-3 IR1,LR1,LR
 Other Optical links


Description


The SFP transceivers are high performance, cost effective modules supporting data rate of
125Mbps/155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics
functions.



Part Number Product Description


LS-SM3103-20DC 1310nm, 155Mbps, LC, 20km, 0°C~+70°C, with DDM
LS-SM3103-20DI 1310nm, 155Mbps, LC, 20km, -40°C~+85°C, with DDM
LS-SM3103-20NC 1310nm, 155Mbps, LC, 20km, 0°C~+70°C, without DDM
LS-SM3103-20NI 1310nm, 155Mbps, LC, 20km, -40°C~+85°C, without DDM



155Mbps SFP Transceiver Single Mode 20km Reach 1310nm Industrial Tepm 0
