Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG0820CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50/ tray,24tray in 1 carton, which is 37*30*30 cm, 9KGS (1200 pcs) / carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Spec: |
A60-112-300P432 |
Equivalent: |
LPJG0820CNL |
Magnetics: |
1000Base-T Integrated |
Mounting: |
PCB R/A |
I/O: |
10/100/1000 Mbps |
Termination: |
Solder |
LEDs: |
Optional |
Samples: |
Free |
Spec: |
A60-112-300P432 |
Equivalent: |
LPJG0820CNL |
Magnetics: |
1000Base-T Integrated |
Mounting: |
PCB R/A |
I/O: |
10/100/1000 Mbps |
Termination: |
Solder |
LEDs: |
Optional |
Samples: |
Free |

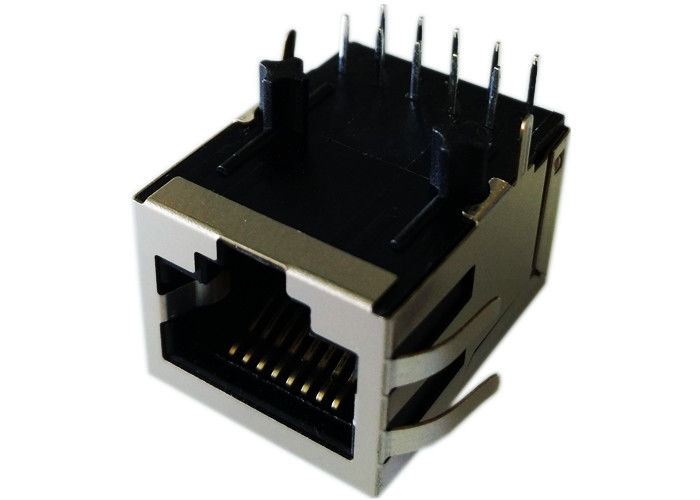

| Family | Ethernet Connectors Female Socket |
|---|---|
| MFN | A60-112-300P432 |
| OEM in China PN | LPJG0820CNL |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.535" (13.59mm) |
| LED Color | Does Not Contain LED |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, EMI Finger |
| Features | Board Lock |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | Flash |
| Shield Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
