Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: L19T001-3
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Price: |
Supportive |
P/N: |
L19T001-3 |
Series: |
Quad Port GigE Transformer |
Mounting: |
DIP |
Document: |
PDF / Datasheet / 3D / Step /Stp |
Alternate: |
L19T001-3=>LPxxxNL |
Samples: |
Available 4 Pcs |
Price: |
Supportive |
P/N: |
L19T001-3 |
Series: |
Quad Port GigE Transformer |
Mounting: |
DIP |
Document: |
PDF / Datasheet / 3D / Step /Stp |
Alternate: |
L19T001-3=>LPxxxNL |
Samples: |
Available 4 Pcs |
NOTES:

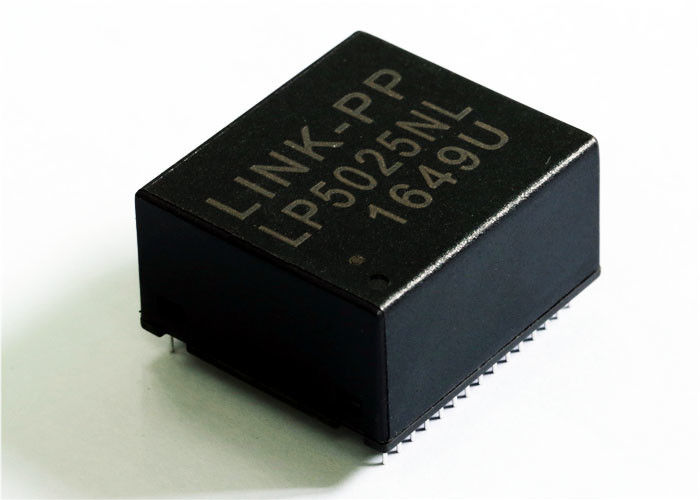

1 Lan Isolation Transformer L19T001-3
2 Pin to pin compatible by LINK-PP LPXXXNL
3 Designed to support Quad gigabit ethernet
4 Compliant with IEEE 802.3ab standard for 1000 BASE-T
5 Compliance with ROHS requirements
Application:
1 Network Cards and Network Controllers
2 Point of Sale and Kiosk Computers
3 Data Acquisition Products
4 GPIB Expanders and GPIB Isolators
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL: | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss: | -1.0dB MAX @ 1-65MHz |
| Return Loss: | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk: | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection: | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test: | 1500Vrms MIN |
| Operating Temperature Range: | 0℃ TO 70℃. / -25°C to +105°C |
