RTC-1S4AAK1A Multi-port RJ45 1x4 Connector LPJG47305A47NL 10/100BT Magnetic

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: RTC-1S4AAK1A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

multi port connector

,

modular jacks rj45

Part Number:
RTC-1S4AAK1A
Samples:
Available 3 Pcs
Tab:
Up
Speed:
10/100 Base -t
Port:
1X4 Multi-port
Pin To Pin:
LPJG47305A47NL
Part Number:
RTC-1S4AAK1A
Samples:
Available 3 Pcs
Tab:
Up
Speed:
10/100 Base -t
Port:
1X4 Multi-port
Pin To Pin:
LPJG47305A47NL

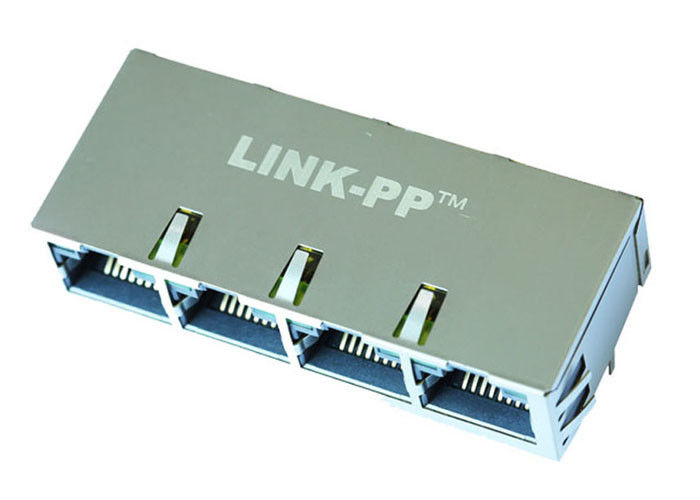

RTC-1S4AAK1A Multi-port RJ45 1x4 Connector LPJG47305A47NL 10/100BT Magnetic
RTC-1S4AAK1A Multi-port RJ45 1x4 Connector LPJG47305A47NL 10/100BT Magnetic



RTC-1S4AAK1A
Trader Part Number
RTC-1S4AAK1A
Made in China
LPJG47305A47NL
Manufacturer
LINK-PP China
Description
Multi FastJack 4 Ports
Documents Available
PDF/3D/Step/IGS/Price/Cross
CORES
12

RTC-1S4AAK1A Multi-port RJ45 1x4 Connector LPJG47305A47NL 10/100BT Magnetic 0

Electrical Specifications @25℃
1. OCL : 350uH Min
    @ 100KHz , 0.1V , 8mA DC BIAS
2. Insertion Loss :
   1-100MHz : -1.0dB MAX
3. Return Loss ;
    1-30MHz : -18dB Min . Load 100Ω
    30-60MHz : -16dB Min . Load 100Ω
    60-80MHz : -12dB Min . Load 100Ω
    80-100MHz : -10dB Min . Load 100Ω
4. Crosstalk :
    1-100MHz : -30dB Min
4. CMR :
    1-100MHz ; -30dB Min
5. Hipot Test :
    1500Vrms MIN
6. Operating Temperature : 0 to 70℃


100% Guarantee Qualtiy

Manufactured Under Strict Controls.

100% Tested (Not Just Batch Tested)

LINK-PP Is OEM Of TE (Tyco) For 9 Years

Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

Quality Guarantee:6 Years
