RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic

China RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic supplier
RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic supplier RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic supplier

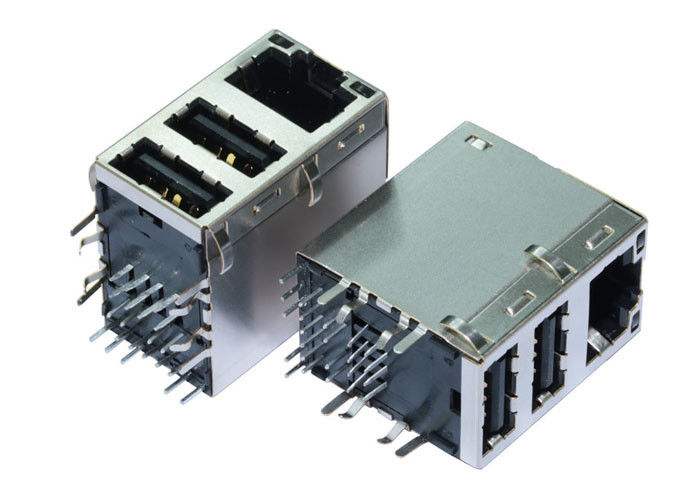

Large Image :  RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: RU2-1150HU13

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 5000 / 10K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Spec Item: RU2-1150HU13 Files: 3D Step IGS PDF
Application: HUB, PC Card, Switch, Router Etc Mounting: Side Entry (Right Angle)
Cross Rf: LPJU4281A64NL = RU2-1150HU13 Termination: Solder

RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic

1. 1x 1000M Rj45 , 2x USB2.0 Integrated Magnetics
2. IEEE 802.3ab
3. Stacked USB connector RU2-1150HU13
4. HUB, PC card, Switch, Router
5. LED optional , EMI-finger Optional

Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-100MHz
Return Loss -18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
Cross talk -30dB MIN @ 1-100MHz
Common Mode Rejection -30dB MIN @ 1-100MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃

Applications:
1. PCMCIA Networking Cards
2. Touch Screen Displays
3. Kiosk and POS Printers
4. Bus Analyzers and Bus Exercisers
5. CPU Cards and Modules
6. Programmable Logic Controllers (PLC)

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time

RU2-1150HU13 RJ45 USB Connector LPJU4281A64NL With 10/100Mbps Magnetic
