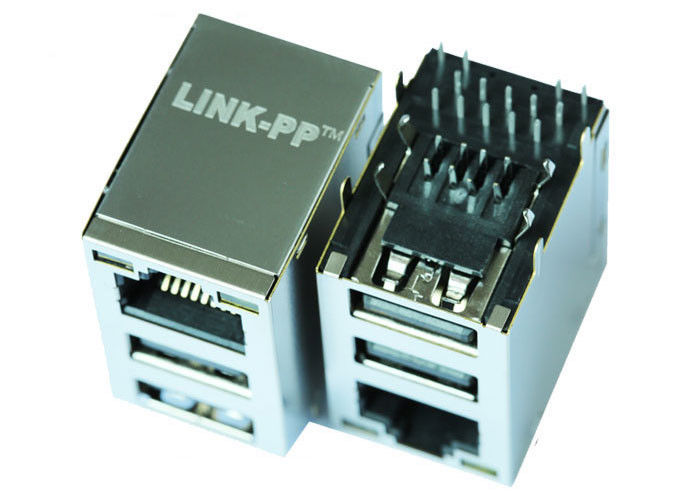

RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack

China RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack supplier
RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack supplier RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack supplier

Large Image :  RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008 REACH
Model Number: RU5-161A5FGF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4600K/month
Contact Now
Detailed Product Description
Product Name: RU5-161A5FGF RJ45 Shielded: Yes
Alternate Rf: LPJU5278BONL Port Configuration: Single With Dual Usb
Connector Style: Jack Application: PC Card, PC Mainboard, SDH, PDH, Switch, Router

RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack

Quick Details :

1. RJ45 Magjack with leds

2. 10/100/1000 base-tx RJ45 jack with dual usb combo

3. USB RJ45 Magjack

4. HUB, PC card, Switch, Router

5. Designed for network interface card application

6. Designed to meet IEEE802.3u requirement

Description :



LINK-PP Part Number LPJU5278BONL
Tyco Part Number RU5-161A5FGF
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option ORANGE,GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1 PORT WITH USB
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 31.45
Package Length (mm) 27.69
Package Width (mm) 19.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100/1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time



RU5-161A5FGF Standard Switch RJ45 USB Connector LPJU5278BONL Right Angle Jack
