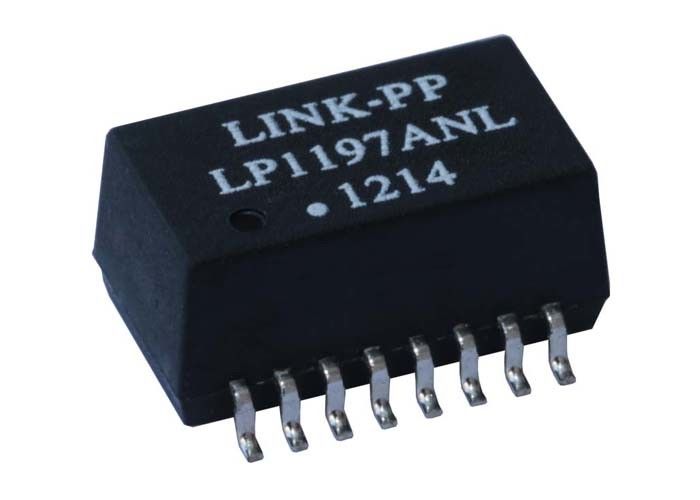

7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD

China 7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD supplier
7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD supplier 7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD supplier

Large Image :  7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490100143

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 7490100143 P/N: LP1197ANL
Ethernet: 10/100Base-T SMD Measure: 13.08x14.99x3.68mm
Mounting: SMD Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD



1. 10/100Base-T Transformer for PoE Application

2. Lan Discrete Transformer Modules

3. Simplest magnetic component to place androute on PCB

4. Designed to meet IEEE802.3u requirement

5. Dimensional : 12.70x7.15x6.20mm

6. Document : PDF / Datasheet / 3D / IGS / Step /Stp



7490100143 Dual Port Ethernet Magnetic Transformers LP1197ANL 10/100Base-T SMD LINK-PP Part Number LP1197ANL
Designing Model 7490100143
Application-Lan ETHERNET(NoN PoE)
Cores per Port 2
Transformer Type DATACOM TRANSFORMER
Mounting Feature SURFACE MOUNT
Package Height (mm) 12.70
Package Length (mm) 9.30
Package Width (mm) 6.20
Application GENERAL PURPOSE
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications @25℃

1. Turns Ratio

    TX=1CT:1CT   RX=1CT:1CT

2. OCL:350uH Min

    @100KHz,100mV,8mADC Bias
3.Insertion Loss:
   0.1-100MHz:-1.2dB MAX
4.Return Loss:
   1-30MHz:-16dB MIN

   40MHz:-14dB MIN
   50MHz:-13dB MIN

   60-80MHz:-12dB MIN
5.Crosstalk:

   30MHz:-45dB TYP
   60MHz:-40dB TYP

   100MHz:-35dB TYP
6.Differential to Common Mode Rejection:
   30MHz:-43dB MIN

   60MHz:-37dB MIN
   100MHz:-33dB MIN
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃~85℃.



Applications:
1. RAID Disk Arrays
2. CompactPCI Switches and PXI Switches
3. Vacuum Fluorescent Displays

4. Ink and Toner Cartridges



Competitive Advantage:

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And Optical Transceiver Modules

1. 16 years production experience,

2. 1100 staff,

3. 100% test

4. Flexible delivery time
