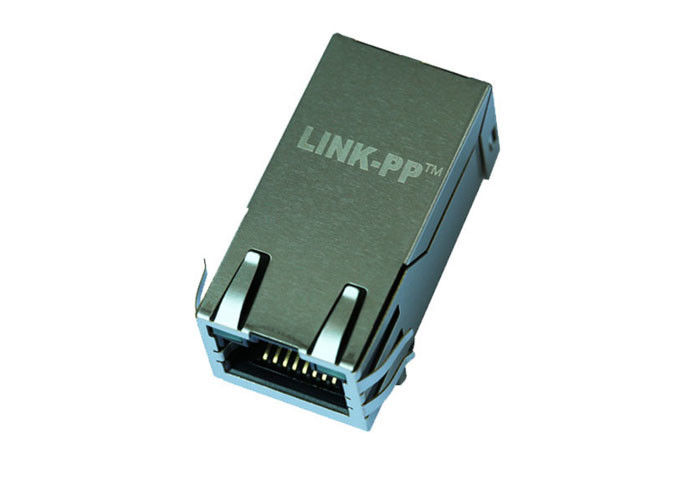

MIC3111C-0152W-LF3 RJ45 Modular Jack LPJK0071AONL 1000BT Integrated Magnetic

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC3111C-0152W-LF3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive&Competitive

Packaging Details: Tray&Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Part Number:
MIC3111C-0152W-LF3
Made In China:
LPJK0071AONL
Apllication:
RJ45 With Integrated Magnetics
Original Munafactuer:
LINK-PP
Product Family:
Modular Jacks / Plugs
Samples:
Free Available
Part Number:
MIC3111C-0152W-LF3
Made In China:
LPJK0071AONL
Apllication:
RJ45 With Integrated Magnetics
Original Munafactuer:
LINK-PP
Product Family:
Modular Jacks / Plugs
Samples:
Free Available
MIC3111C-0152W-LF3 RJ45 Modular Jack LPJK0071AONL 1000BT Integrated Magnetic
MIC3111C-0152W-LF3 RJ45 Modular Jack LPJK0071AONL 1000BT Integrated Magnetic



Part Number
Made In China
Manufacturer

 Description

MIC3111C-0152W-LF3
LPJK0071AONL
LINK-PP
Modular Jack With Integrated Magnetics With LEDS

Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Rj45
1000 Mbps
Thru-Hole

Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
O,G/Y
Shielded



NOTES:

1. Designed to support application,such as SOHO(ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94V-0

    Contact / Shield : Cooper alloy

    Shield plating : Nickel

    Contact plating: Gold 6 micro-inches min.In contact area.

4. Wave solder tip temperature : 265℃ Max

    Wave solder tip temperature Time : 5 Sec Max





Part Number MIC3111C-0152W-LF3 Height(mm) 13.50
Cross Compatible LPJK0071AONL Length(mm) 32.50
Manufacturer LINK-PP Width(mm) 16.60
Speed 1000 Base-T Number of Port 1
