JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port

China JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port supplier
JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port supplier JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port supplier

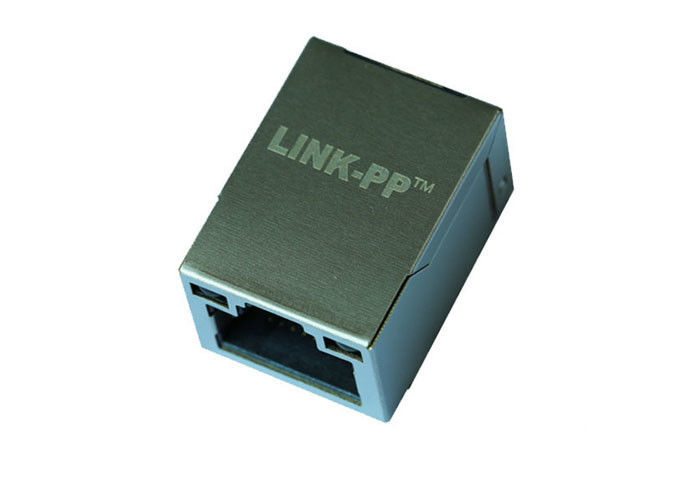

Large Image :  JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: JXD6-0002NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specifications: JXD6-0002NL P-N: LPJ19434BCNL
Application: Networking Termination: Solder
LEDs: Optional Contact Termination Type: Surface Mount

JXD6-0002NL 10/100 Magnetic SMT RJ45 Connector LPJ19434BCNL Ethernet Port


1. Integrated magnetic connector with 10/100M Circuit RJ45 single port (1x1) connector.
2. Surface Mount 1X1 Tab up Jack with 10/100 Magnetic JXD6-0002NL
3. Contact Area : Gold Flash
4. 1X1 RJ45 With LEDs , Meeting IEEE 802.3ab

5. Operating Temperature (°C ) : -40 - +85

6. Hipot : 1500Vrms MIN


Description

Part Number
JXD6-0002NL
Cross Part Number LPJ19434BCNL
Application-LAN
ETHERNET(NON POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
4
Diodes
NO DIODES
LED Option
WITH LEDS
Latch
UP
Number of Ports
Single Port
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH
Speed
10/100 BASE-T
Temperature
-40 TO 85°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1

Applications For Terminal User
Designed to support Network Interface Card (NIC) applications, LAN-on-Motherboard (LOM) applications and PC applications.Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage
2600 staff,
100% test
Flexible delivery time

Main Customer
Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
