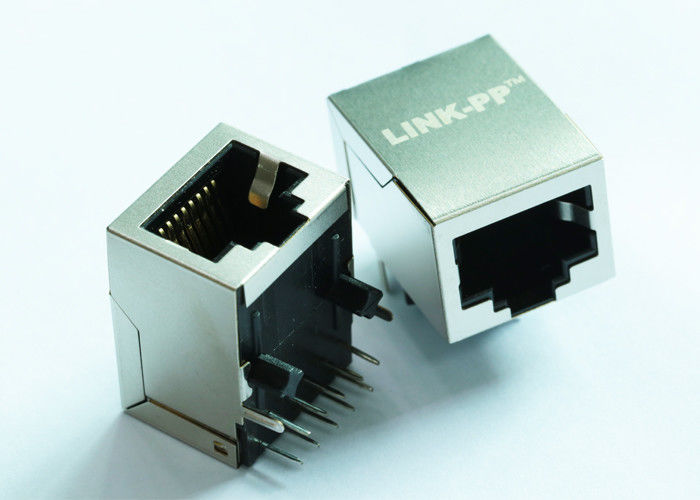

ARJ11A-MASK-PU2 10 BASE-T Magnetic Rj45 Modular Jack Shielded Right Angle

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11A-MASK-PU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

PN Customer:
ARJ11A-MASK-PU2
PN Made In China:
LPJXXXNL
Design Flexible:
Yes
Samples:
Available
Turns Ratio:
1CT∶1CT ( ±2% )
Isolation Voltage:
1500Vrms
PN Customer:
ARJ11A-MASK-PU2
PN Made In China:
LPJXXXNL
Design Flexible:
Yes
Samples:
Available
Turns Ratio:
1CT∶1CT ( ±2% )
Isolation Voltage:
1500Vrms
ARJ11A-MASK-PU2 10 BASE-T Magnetic Rj45 Modular Jack Shielded Right Angle
ARJ11A-MASK-PU2 10 BASE-T Magnetic Rj45 Modular Jack Shielded Right Angle

Part Number: ARJ11A-MASK-PU2
Cross Compatible; LPJXXXNL
Manufacturer LINK-PP
Speed: 10 Base-T
Height(mm) 13.84
Length(mm) 21.59
Width(mm) 16.26
Number of Port: 1
Turns Ratio (Np:Ns) 1:1; 1:1
ARJ11A-MASK-PU2 10 BASE-T Magnetic Rj45 Modular Jack Shielded Right Angle 0

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max



Electrical Specification @25℃
1.Turns Ratio TX/RX (±5%):
   1:2CT/1CT:1CT
2.EMI fingers: NO
3.Insertion Loss:
1-10MHz:-1.15dB Max
4.Attenuation TX/RX (dBMIN):
20MHz:-5/-4.2

25MHz:-18/-11
30MHz:-28/-16

40MHz:-33/-26
5.Return Loss TX & RX@100Ω±15Ω(dB MIN):
1-10MHz:-13.5
6.Crosstalk (dB MIN):
1-10MHz:-30

7.CMR (dB MIN):

30MHz:-30
7.Hipot (Vrms) 0.5mA, 2sec: 1500Vrms







Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
