Home > products > Magnetic RJ45 Jack > ARJ11D-MASG-B-A-EMU2 10/100 Magnetic Rj45 Ethernet Jack Tab up with Shielded

ARJ11D-MASG-B-A-EMU2 10/100 Magnetic Rj45 Ethernet Jack Tab up with Shielded

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11D-MASG-B-A-EMU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Specification:
ARJ11D-MASG-B-A-EMU2
Part No:
LPJxxxxxNL
Ethernet:
1x10/100Mbps
Samples:
Available
Shielded:
With
Latch:
Tab Up
Specification:
ARJ11D-MASG-B-A-EMU2
Part No:
LPJxxxxxNL
Ethernet:
1x10/100Mbps
Samples:
Available
Shielded:
With
Latch:
Tab Up

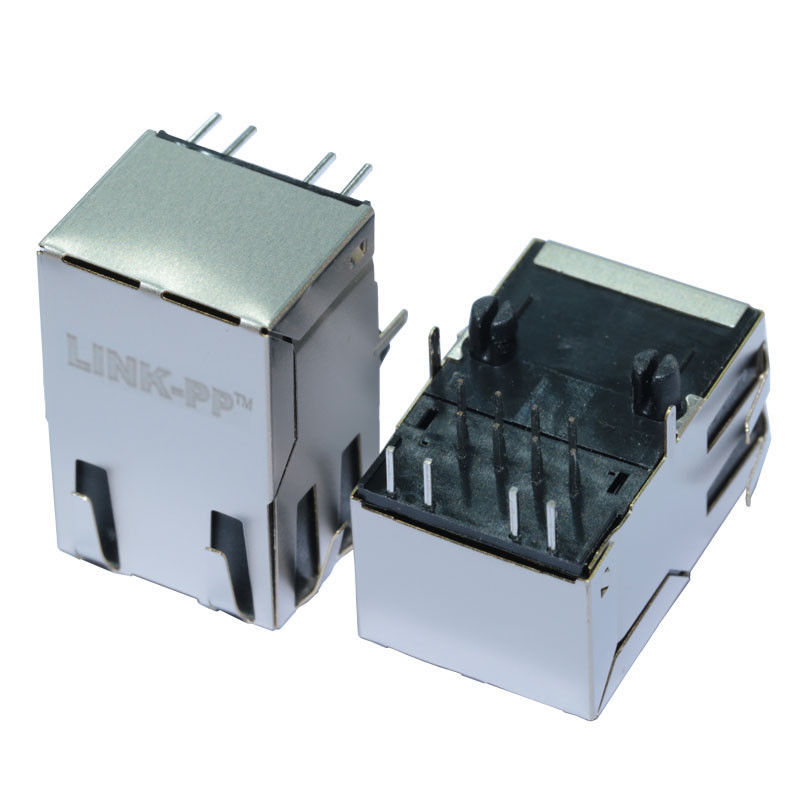

ARJ11D-MASG-B-A-EMU2 10/100 Magnetic Rj45 Ethernet Jack Tab up with Shielded
ARJ11D-MASG-B-A-EMU2 10/100 Magnetic Rj45 Ethernet Jack Tab up with Shielded



  • Rj45 Modular Jacks LPJxxxxxNL LINK-PP
  • 10/100 Base-T Modular jacks
  • Single Port Modular Jacks
  • With EMI-finger Tabs
  • Tab Up RJ45 ARJ11D-MASG-B-A-EMU2
  • 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX
  • We Can Offer 3-5 pcs Samples Free
  • 100% tested
ARJ11D-MASG-B-A-EMU2 10/100 Magnetic Rj45 Ethernet Jack Tab up with Shielded 0




1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85



Other models available:

ARJ11D-MDSD-A-B-FLT2 ARJ11D-MDSD-A-B-ELT2 ARJ11D-MDSD-A-B-GLT2
ARJ11D-MCSA-LU2 ARJ11D-MESH-LU2 ARJ11D-MDSE-A-B-GMU2
ARJ11D-MDSG-B-A-FMU2 ARJ11D-MASG-A-A-GMU2 ARJ11D-MASG-B-A-GMU2
ARJ11D-MDSE-A-B-FMU2 ARJ11D-MASB-B-A-EMU2 ARJ11D-MASB-B-A-FMU2
ARJ11D-MASB-B-A-GMU2 ARJ11D-MDSG-B-A-GMU2 ARJ11D-MASG-B-A-FMU2
ARJ11D-MASG-A-A-EMU2 ARJ11D-MASG-A-A-FMU2 ARJ11D-MDSG-B-A-EMU2
ARJ11D-MASG-B-A-EMU2 ARJ11D-MASE-A-B-FMU2 ARJ11D-MASE-A-B-GMU2
