Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XMH-01-5-H78-111-1P2-IV1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 60 pcs /Tray16trays/carton,Size37*30*30 cm, 11KGS (960 pcs) /Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
XMH-01-5-H78-111-1P2-IV1 |
Cross Part: |
LPJK0072AWNL |
LED: |
GREEN / GREEN |
Lan: |
10/100/1000Mbps |
Termination: |
Solder |
Samples: |
Available Free |
Specification: |
XMH-01-5-H78-111-1P2-IV1 |
Cross Part: |
LPJK0072AWNL |
LED: |
GREEN / GREEN |
Lan: |
10/100/1000Mbps |
Termination: |
Solder |
Samples: |
Available Free |
|
|

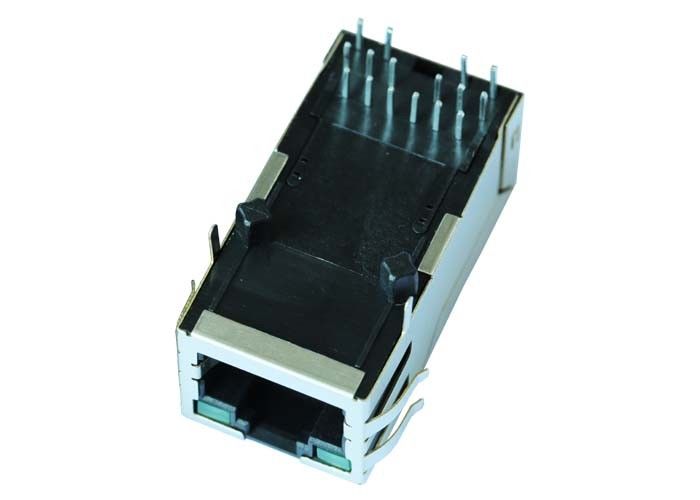

| LINK-PP Part Number | XMH-01-5-H78-111-1P2-IV1 |
| Cross Part Number | LPJK0072AWNL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.30 |
| Package Length (mm) | 33.02 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
