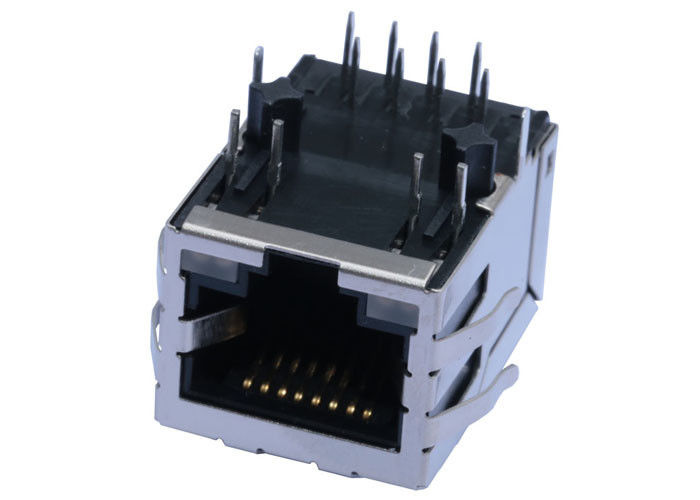

HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL

HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL
HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL

Large Image :  HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HFJ11-RPE26E-L55RL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000K-PCS/Month
Detailed Product Description
LINK-PP Part Number: LPJ4104G4NL Cross Part Number: HFJ11-RPE26E-L55RL
Speed: 10/100 BASE-T With POE LED: Green , Yellow / Green , Yellow
Port: 1X1 Single Cores: 5
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL

LINK-PP Part Number LPJ4104G4NL
Designing Model HFJ11-RPE26E-L55RL
Cores per Port 5
LED Option GREEN , YELLOW / GREEN , YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.30
Package Length (mm) 21.25
Package Width (mm) 15.93
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

HFJ11-RPE26E-L55RL Rj45 Modular Jack With POE For Ethernet Gateway LPJ4104G4NL 0




1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Body Related Features:
  1) Port Configuration = Single
  2) EMI Fingers -Top and Sides = With
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

5. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole

6. Identification Marking:
  1) Left LED Color (Position #1) =
Green , Yellow
  2) Right LED Color (Position #2) =
Green , Yellow

7. Operating Temperature (°C ) = -40 - +85



Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
