Home > products > Magnetic RJ45 Jack > LMJTAB881443M-L / LMJTAB881543M-L Magnetic RJ45 Modular Jack , RJ45 With LEDs

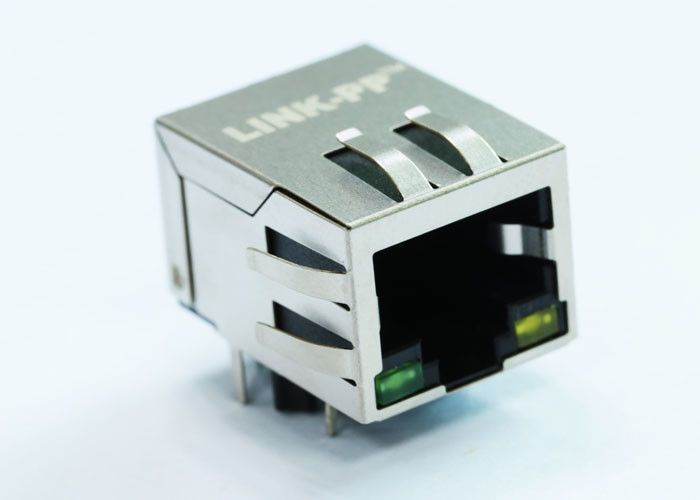

LMJTAB881443M-L / LMJTAB881543M-L Magnetic RJ45 Modular Jack , RJ45 With LEDs

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LMJTAB881443M-L / LMJTAB881543M-L

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Negotiable

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5100K/month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Product Name:
LMJTAB881443M-L / LMJTAB881543M-L
Color:
Silver
Shield Material:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Alternate Rf:
LPJ4025ABNL
Product Name:
LMJTAB881443M-L / LMJTAB881543M-L
Color:
Silver
Shield Material:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Alternate Rf:
LPJ4025ABNL
LMJTAB881443M-L / LMJTAB881543M-L Magnetic RJ45 Modular Jack , RJ45 With LEDs
LMJTAB881443M-L / LMJTAB881543M-L Magnetic RJ45 Modular Jack , RJ45 With LEDs



1. P C Mainboard, SDH, PDH, IP Phone, xDSL modem
2. 10/100M Circuit

3. Printed Circuit Board  networking and communication equipments
4. Minimum 1500Vrms
5. LED Color : GREEN / YELLOW

6. Samples : Available



Description:



1. Product Type Features:
1) Product Type Connector
2) Jack Type RJ45
3) Profile Standard
4) PCB Mounting Orientation Through Hole
2. Mechanical Attachment:
1) Jack Configuration 1X1
3. Electrical Characteristics:
1) Shielded Yes
4. Termination Related Features:
1) EMI Finger Yes
2) Termination Method Solder
5. Body Related Features:
1) Port Configuration Stecked
2) EMI Fingers -Top and Sides  With/Without
3) Latch Orientation Standard - Latch Down
4) PCB Tail Length 3.50±0.50mm
6. Contact Related Features:
1) Preloaded Yes
2) Contact Termination Type  Through Hole
7. Housing Related Features:
1) Connector Style Jack
8. Industry Standards:
1) RoHS/ELV Compliance RoHS compliant, ELV compliant
2) Lead Free Solder Processes  Wave solder capable to 265°C
3) RoHS/ELV Compliance History  Always was RoHS compliant
9. Identification Marking:
1) Left LED Color Green
2) Right LED Color  Yellow
10. Conditions for Usage:
1) Applies To Printed Circuit Board
2) Environmental Conditions Office / Premises
3) Operating Temperature (°C )  -40 - +85
11. Configuration Related Features
1) Magnetic Circuit 3D15
2) Status Indicator Led
3) Decoupling Capacitor With/Without
4) Rear PCB Ground Tab With/Without
5) Signal Lead Quantity 4
12. Operation/Application:
1) Application 10/100 Base-T





Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
