Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001
Model Number: LPJK6069CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Customer PN: |
7499511002A |
Ethernet: |
Giagbit POE Applications |
Port Config: |
1x1 Female Jack |
Magnetic: |
Integrated |
LEDs: |
No |
Samples: |
Free |
Cross Rf: |
7499511002A = LPJK6069CNL |
Customer PN: |
7499511002A |
Ethernet: |
Giagbit POE Applications |
Port Config: |
1x1 Female Jack |
Magnetic: |
Integrated |
LEDs: |
No |
Samples: |
Free |
Cross Rf: |
7499511002A = LPJK6069CNL |
1.Isolation1500Vrms
2.Side Entry Gigabit rj45 Port
3.IEEE802.3af/at Standards
4.Application : PC Mainboard, SDH, PDH

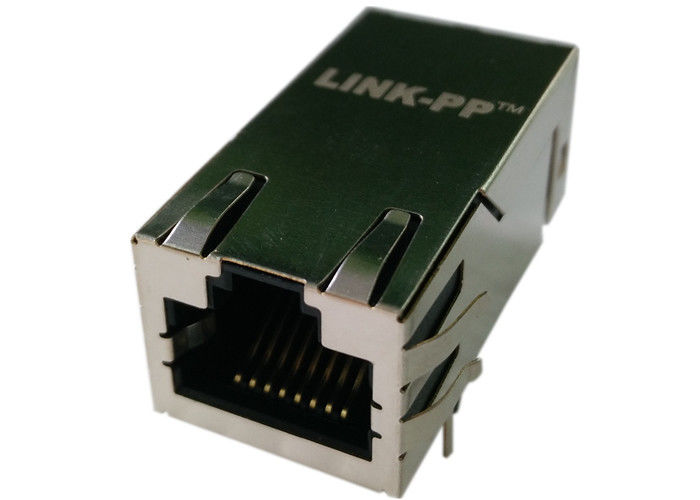

| Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics & PoE+ ,without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJK6069CNL |
| WE Part Number | 7499511002A |
| Application-Lan | ETHERNET(PoE+) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.261 |
| Package Length (mm) | 32.02 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
