One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11A-MASL-QU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4000K/month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

P/N:
ARJ11A-MASL-QU2
EMI Finger:
NO
Port:
1x1,single,custom
Turns Ratio TX/RX:
1:1.414CT/1CT:1CT
Speed:
10 BASE-T
Samples:
Available
P/N:
ARJ11A-MASL-QU2
EMI Finger:
NO
Port:
1x1,single,custom
Turns Ratio TX/RX:
1:1.414CT/1CT:1CT
Speed:
10 BASE-T
Samples:
Available

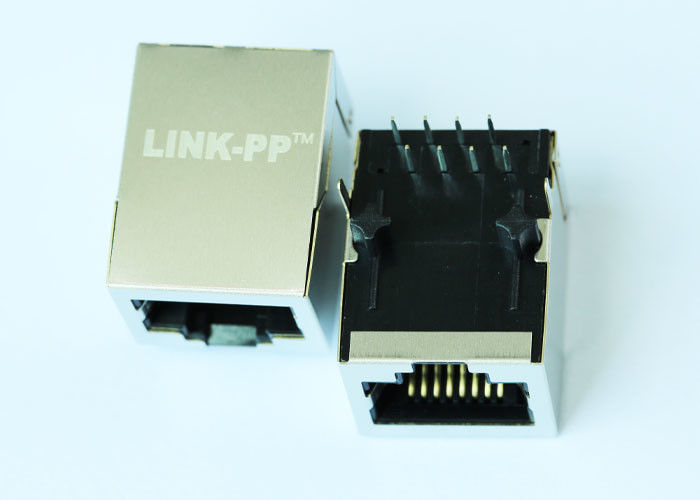

One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down
One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down



1. RJ45 modular plug ARJ11A-MASL-QU2
2.10 BASE-T RJ45 without leds
3. Network Interface Module
4. Minimum 1500Vrms

5. Samples:Available 5 pcs

6. Files:PDF/3D/ISG/Stp/Step/Datasheet



Description:
1X1 Tab-Down 10M RJ45 connector without leds, dimension: 16.26X21.59X13.84MM

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85





Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time
