ARJ11G-MBSD-LU2 Vertical RJ45 Jack With 10 / 100M Magnetics , Router RJ45

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11G-MBSD-LU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4800K/month

Get Best Price
Highlight:

stacked rj45 connectors

,

modular jacks rj45

Item:
ARJ11G-MBSD-LU2
Pin To Pin:
ARJ11G-MBSD-LU2 => LPJxxxNL
Connector Style:
Vertical
RJ45 Shielded:
With
Tab:
User Selectable
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Item:
ARJ11G-MBSD-LU2
Pin To Pin:
ARJ11G-MBSD-LU2 => LPJxxxNL
Connector Style:
Vertical
RJ45 Shielded:
With
Tab:
User Selectable
Files:
PDF/3D/ISG/Stp/Step/Datasheet

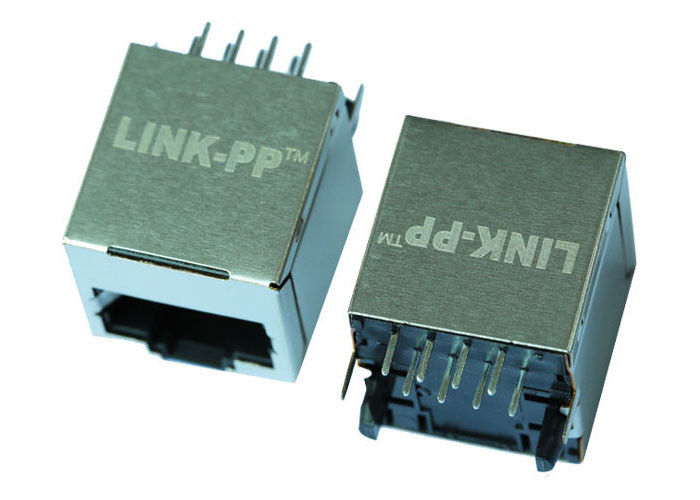

ARJ11G-MBSD-LU2 Vertical RJ45 Jack With 10 / 100M Magnetics , Router RJ45
ARJ11G-MBSD-LU2 Vertical RJ45 Jack With 10 / 100M Magnetics , Router RJ45



1. Single Port RJ45 Jack
2. 100 Base-T RJ45 Connector
3. Right Angle Network Interface Module
4. Virtical RJ45 Jack

5. Does Not Contain LED

6. Tab : User Selectable



Part Number: ARJ11G-MBSD-LU2 Height(mm) 16.70
Cross Compatible; LPJxxxNL Length(mm) 17.00
Manufacturer LINK-PP Width(mm) 16.10
Speed: 10/100 Base-T Number of Port: 1
LED Without Turns Ratio (Np:Ns) 1:1; 1:1



Description:

1X8 10/100/1000M tab-down RJ45 connector with/without leds

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 8

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85



Applications:

1. GPIB Expanders and GPIB Isolators

2. Fieldbus Products

3. Card Guides

4. Ink and Toner Cartridge



Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time

ARJ11G-MBSD-LU2 Vertical RJ45 Jack With 10 / 100M Magnetics , Router RJ45 0
