LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile

China LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile supplier
LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile supplier LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile supplier

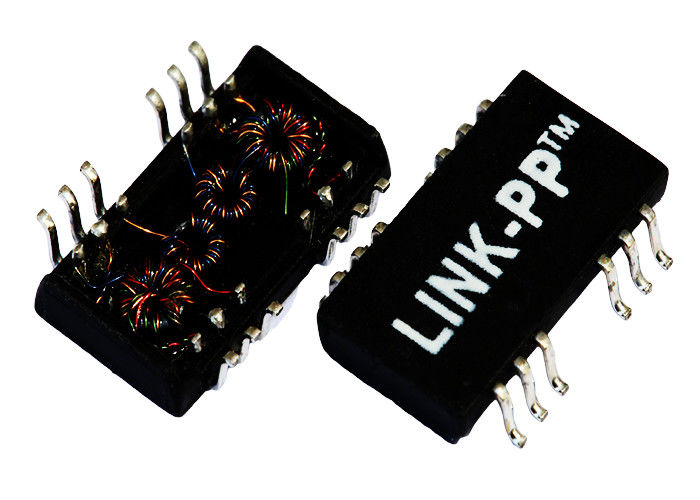

Large Image :  LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP0013ANL

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP0013ANL P/N: LP0013ANL
Ethernet: 10/100Mbps Mounting: SMD
Ratio: 1CT:1CT Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP0013ANL Ethernet Magnetic Transformers 10/100Mbps Low Profile
  1. 10/100Mbps Transformer
  2. Single Port Transformer Modules
  3. SMT Transformer Low Profile 1.98mm Height Max
  4. Coils: 4
  5. 12.7x9.65x1.98mm
Single Port, 10/100 BASE-T PC Card Ethernet Lan Transformer Modules, SMT,Rohs
LINK-PP Part Number LP0013ANL
Bothhand Part Number NS0013AF
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (Non PoE)
Package SMD
Temperature -40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.078
Package Height (mm) 1.98
Package Length (Inches) 0.380
Package Length (mm) 9.65
Package Width (Inches) 0.500
Package Width (mm) 12.70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL:
350uH Min @ 100KHz 0.1V
4.Hipot: 1500VAC 1S 1mA
5.Insertion Loss:
-0.9dB MAX @ 100KHz TO 100MHz
6.Return Loss:
-16dB MIN @ 30MHz
-12dB MIN @ 60MHz
-11dB MIN @ 80MHz
7.Crosstalk:
-50dB MIN @ 30MHz
-45dB MIN @ 62MHz
-37dB MIN @ 100MHz
8.DCMR:
-35dB MIN @ 30MHz
-33dB MIN @ 50MHz
-20dB MIN @ 100MHz
9.Operating Temperature: -40℃~+85℃.
