LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

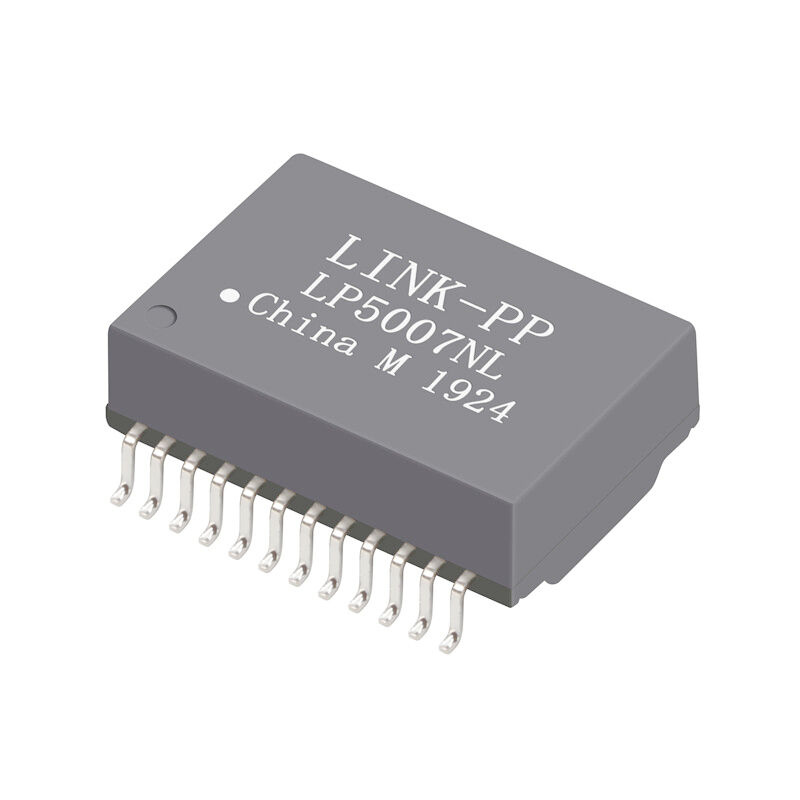

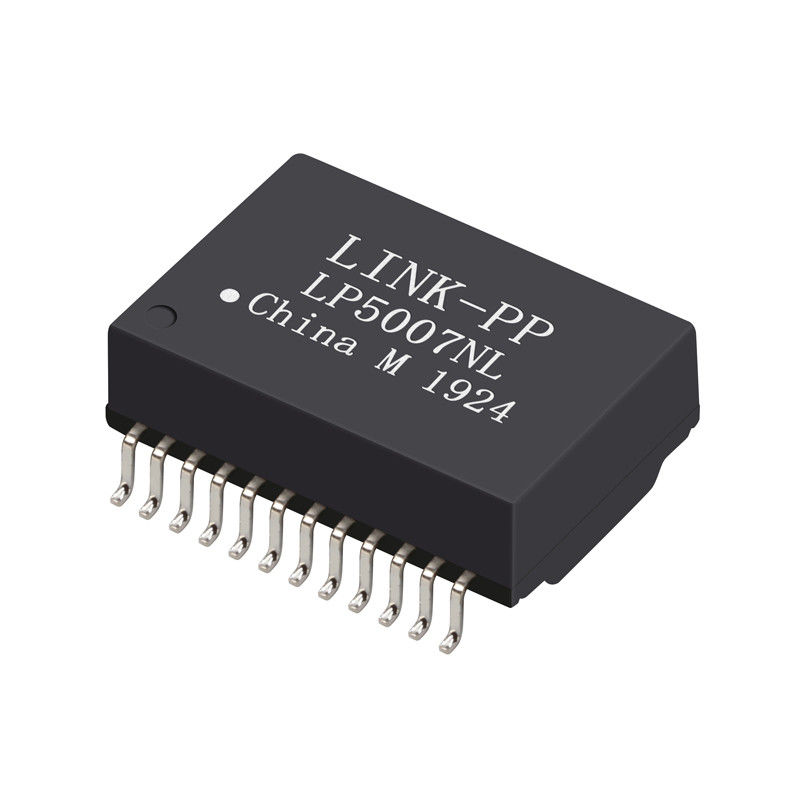

LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers

China LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers supplier
LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers supplier LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers supplier

Large Image :  LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP5007ANL

Payment & Shipping Terms:

Minimum Order Quantity: 1400pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP5007ANL Ethernet: Gigabit X1
Measure: 17.70x15.80x6.60mm Mounting: Surface
Position: 24 Pins Samples: Available

LP5007ANL XFMR 1000BASE-T SINGLE PORT 1:1 SMT Magnetic Transformers
  1. XFMR 1000BASE-T SINGLE PORT 1:1 SMT
  2. 1000Base-t Magnetics Module
  3. LP5007ANL 1x10/100/1000Mbps Lan Port
10/100 Base -T Magnetics Transformer Modules SMD, Rohs
LINK-PP Part Number LP5007ANL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 12
Number of Ports SINGLE
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.7
Package Width (Inches) 0.496
Package Width (mm) 12.6
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side



Applications



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage



1100 staff,

100% test

Flexible delivery time

LP5007ANLE
LP5007NL
LP5007NLE
LP5008ANL
LP5008ANLE

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: Amanda.y@link-pp.com

Tel: +8618665915096

Send your inquiry directly to us (0 / 3000)
