Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics

China Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics supplier
Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics supplier Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics supplier

Large Image :  Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1012NL

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1012NL P/N: LP1012NL
Ratio: 1CT:1CT Ethernet: 10/100Base-T
Measure: 25.58x12.70x7.12mm Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

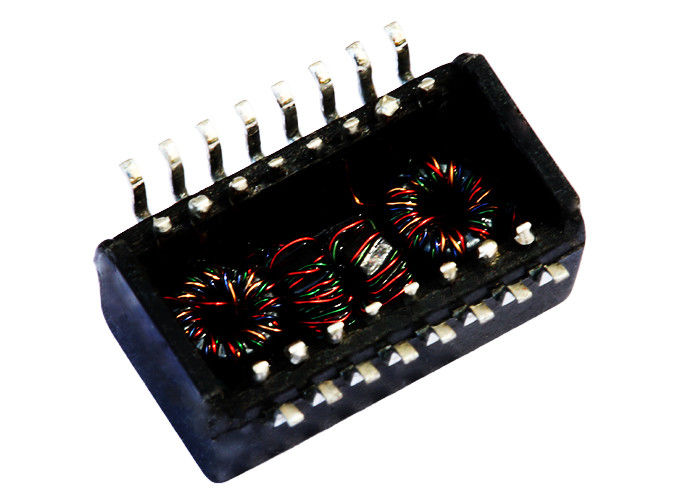

Lan Transformer SMD 16pins LP1012NL 10/100Base-T Network Magnetics

  • Lan Transformer SMD 16pins LP1012NL
  • Coil Structure:  Toroidal
  • Package: SMD 16pins
  • Ethernet 10/100Base-T Network Magnetics
10/100 Base -T Single Port Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1012NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.221
Package Height (mm) 5.62
Package Length (Inches) 0.994
Package Length (mm) 25.25
Package Width (Inches) 0.506
Package Width (mm) 12.87
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
      Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
            60MHz: -35dB Min
            100MHz: -30dB Min
7. Hi-Pot: 1500Vrm Min

Applications:

Used for networking and communication equipments such as HUB,
PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

Free Samples
1100 staff,
100% test
Flexible delivery time



Other Parts Available



LP1012NLE LINK-PP
LP1040PNL LINK-PP
LP1041PNL LINK-PP
LP1044NLE LINK-PP
LP1053NL LINK-PP
LP1060NL LINK-PP
LP1062ANLE LINK-PP
LP1062NLE LINK-PP
