LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers

China LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers supplier
LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers supplier LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers supplier LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers supplier LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers supplier

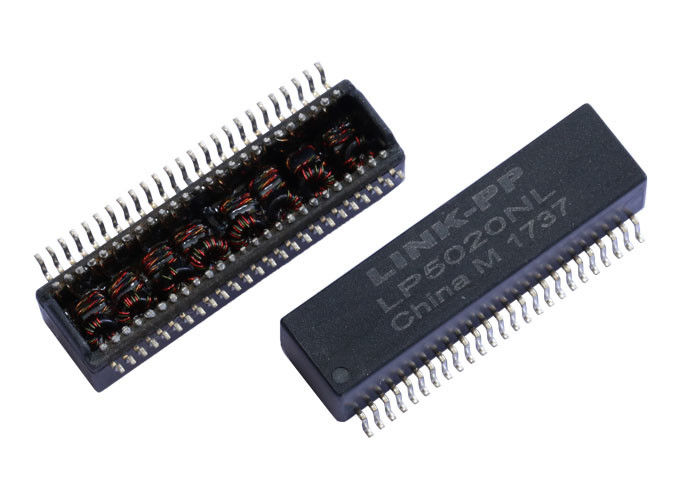

Large Image :  LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP5020NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP5020NL P/N: LP5020NL
Ethernet: 2x Gigabit Dimension: 27.94x10.92x8.66mm
Mounting: SMD Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers
  1. LP5020NL 1000Base-T Dual Magnetic
  2. CoilStructure:Toroidal
  3. SMT,50Pins4.gigabit ethernet transformer
  4. Dual 1000Base-T Transformer LP5020NL



Dual Port, 1000 BASE-T Ethernet Telecom Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5020NL
Speed 1000BASE-T
Number of Ports Dual
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.340
Package Height (mm) 8.66
Package Length (Inches) 1.100
Package Length (mm) 27.94
Package Width (Inches) 0.430
Package Width (mm) 10.92
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers



LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



LP5020NL 1000Base-T Dual Magnetic Modules Gigabit Transformers
