Specifications: LP5019ANL P/N: LP5019ANL
Ethernet: 1x 1000Mbps Mounting: SMD
Dimension: 19.81x19.56x2.54mm Samples: Free

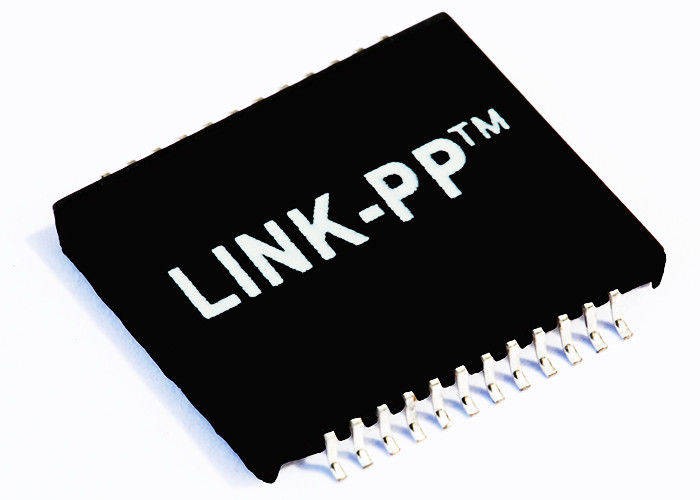

2.54mm Height Low Profile Magnetics LP5019ANL , 1000Base-T Transformer

  1. 2.54mm Height Low Profile Magnetics
  2. Gigabit transformer
  3. LP5019ANL , 1000Base-T Transformer
Dual Port, 1000 BASE-T Low Profile Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number: LP5019ANL
Speed: 1000BASE-T
Number of Ports: DUAL
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: - 40 TO +85
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 12
Package Height (Inches): 0.100
Package Height (mm): 2.54
Package Length (Inches): 0.780
Package Length (mm): 19.81
Package Width (Inches): 0.770
Package Width (mm): 19.56
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT

Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side
