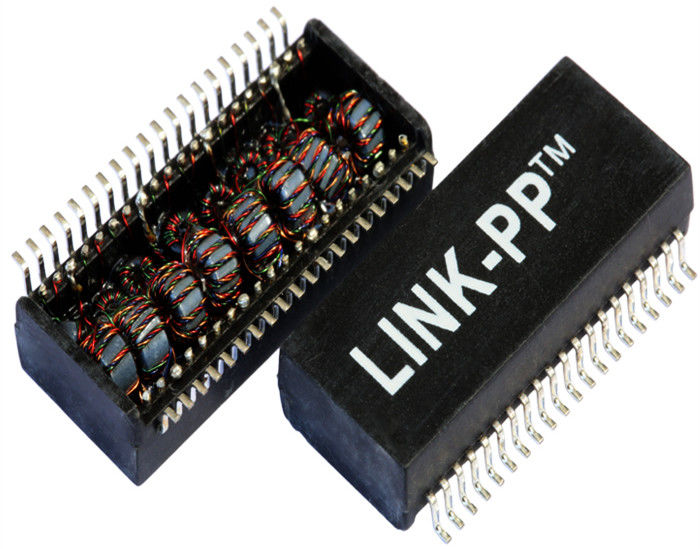

LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter

China LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter supplier
LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter supplier LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter supplier

Large Image :  LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP44009NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP44009NL P/N: LP44009NL
Ethernet: 4x 100Base-T Measure: 28.58x16.26x5.84mm
Mounting: SMT Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP44009NL Ethernet Magnetic Transformers 4x 10/100Base-T Isolation Filter​



1. Ethernet 4x10/100Mbps LP44009NL
2. Isolation Voltage:1500Vrms
3.Type:SMT
4. Coil Structure: Toroidal



1500vrms Ethernet Discrete Transformer With Single Port For Ip Phone

Quad Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP44009NL
Bothhand Part Number 40SS1041RX HF
Speed 10/100BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 1.125
Package Length (mm) 28.58
Package Width (Inches) 0.63
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side


Applications:


Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
