LP1197ANL POE Transformer , 1x 10/100Base-T Power Ethernet IEEE802.3af

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP1197ANL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

power over ethernet transformer

,

poe magnetics

Specifications:
LP1197ANL
Ethernet:
10/100Base-T Power
Standards:
IEEE 802.3af
Mounting:
SMD
Measure:
12.7x9.30x6.20mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP1197ANL
Ethernet:
10/100Base-T Power
Standards:
IEEE 802.3af
Mounting:
SMD
Measure:
12.7x9.30x6.20mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP1197ANL POE Transformer , 1x 10/100Base-T Power Ethernet IEEE802.3af
LP1197ANL POE Transformer , 1x 10/100Base-T Power Ethernet IEEE802.3af

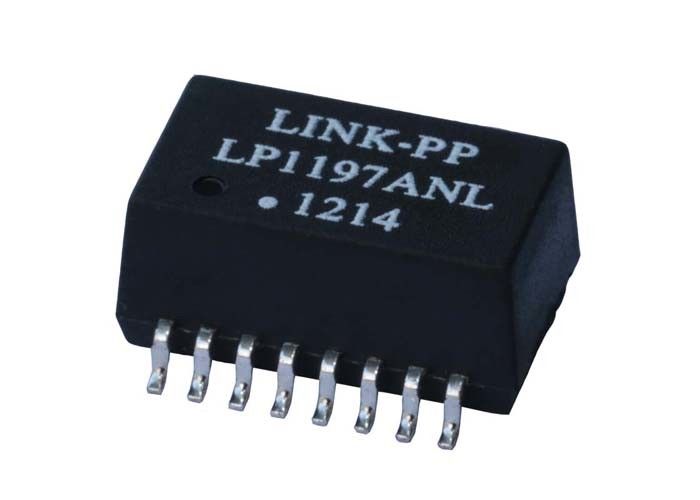

  1. 1x10/100Mbps Ethernet Transformer Module Support POE IEEE802.3af Standards.
  2. LP1197ANL Single Port Power Magnetics
  3. 16 pins Surface Mounting Module
  4. Dimension 12.7x9.30x6.20mm
  5. 1CT:1CT
LP1197ANL POE Transformer , 1x 10/100Base-T Power Ethernet IEEE802.3af 0
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss:
    1-30MHz: -16dB Min
    40MHz: -14.4dB Min
    50MHz: -13.1dB Min
    60-80MHz: -12dB Min
    100MHz: -10dB Min
5. Differential to Common Mode Rejection:
    30MHz: -45dB Min
    60MHz: -40dB Min
    100MHz: -35dB Min
6. Crosstalk
    30MHz: -40dB Min
    60MHz: -35dB Min
    100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

LP1193NLE LP1197ANL LP1197NL LP1198NL



LP1197ANL POE Transformer , 1x 10/100Base-T Power Ethernet IEEE802.3af
