Quad Ports Transformer , LP1060NL 40Pins SMT 4x10/100Base-T Modules

China Quad Ports Transformer , LP1060NL 40Pins SMT 4x10/100Base-T Modules supplier
Quad Ports Transformer , LP1060NL 40Pins SMT 4x10/100Base-T Modules supplier Quad Ports Transformer , LP1060NL 40Pins SMT 4x10/100Base-T Modules supplier

Large Image :  Quad Ports Transformer , LP1060NL 40Pins SMT 4x10/100Base-T Modules

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1060NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1060NL P/N: LP1060NL
Mounting: SMD Ratio: 1:1
Ethernet: 4x 10/100Mbps Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

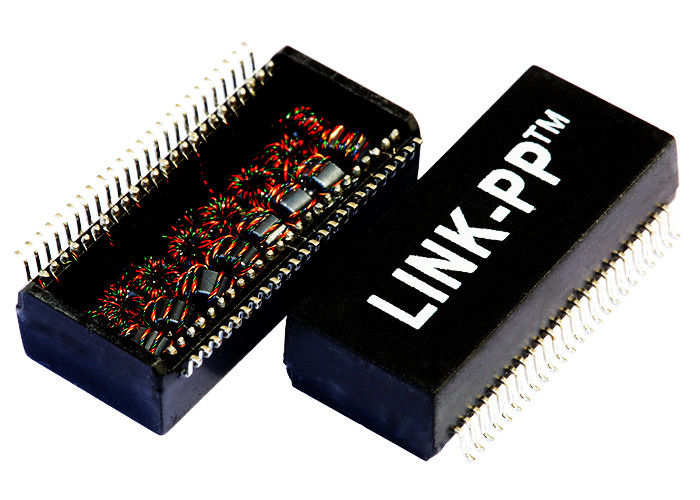

Quad Ports Transformer , LP1060NL 40Pis SMT 4x10/100Base-T Modules



1. Coil Number: Autotransformer 4x10/100Base-T Modules
2. Isolation Voltage:1500Vrms
3. Type:SMT Quad Ports Transformer
4. Coil Structure: Toroidal LP1060NL 40Pins



Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side



Applications:


Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:


1100 staff,

100% test

Flexible delivery time



LP1011NLE
LP1011NL
LP1234NLE
LP1236NL

Quad Ports Transformer , LP1060NL 40Pis SMT 4x10/100Base-T Modules
