Specifications: LP1121NL P/N: LP1121NL
Ethernet: 1x 10/100Mbps Ratio: 1CT:1.414CT,1CT:1CT
Measure: 12.7x9.30x6.20mm Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

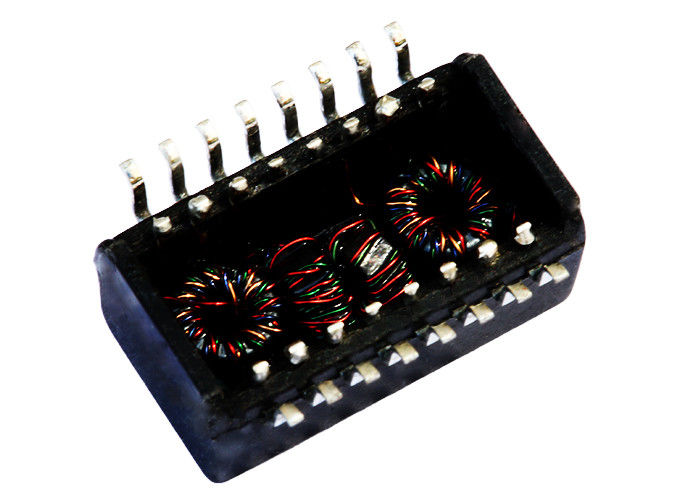

1CT:1.414CT,1CT:1CT, SMD Magnetic Transformers LP1121NL Single Module



  1. 10/100Base-T Transformer Modules
  2. LINK-PP LP1121NL
  3. 16Pins SMD Ethernet Transformer
  4. 1CT:1.414CT,1CT:1CT
10/100 Base -T Single Port Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1121NL
TDK Part Number TLA-6T121LF
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.234
Package Height (mm) 5.95
Package Length (Inches) 0.5
Package Length (mm) 12.7
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1.414CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-18 60MHz:-12
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-30
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃~70℃.
