G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL

China G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier
G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier

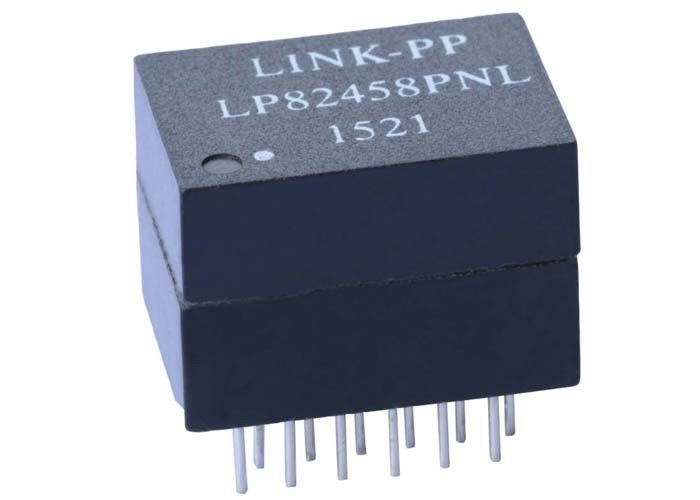

Large Image :  G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: G1PM109N LF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tube Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: G1PM109N LF Part No: LP82458PNL
Family: 4x 100/1000Mbps Ethernet Mounting: PHT
Position: 24 Pins Samples: Available

G1PM109N LF 10/1000 BASE-T Quad Port Magnetics Transformer LP82458PNL
  • Designed for Ethernet 1000 BASE-T, full Quad port applications.
  • LINK-PP LP82458NL Magnetic Transformer
  • Cross G1PM109N LF 4x10/100/1000Base-T Ethernet
  • Compliant with IEEE 802.3ab standard for 1000 BASE-T.
  • Comply with RoHS requirements-whole part No Cd, No Hg,No Cr6+, No PBB and PBDE and No Pb on external pins.
  • Operating temperature range: 0℃ to +70℃.

Quad Port, 100/1000 BASE-T Ethernet Transformer Modules, THT,Rohs
LINK-PP Part Number LP82458PNL
Bothhand Part Number G1PM109N LF
Speed 100/1000BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package THT
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 24
Package Height (Inches) 0.472
Package Height (mm) 12.00
Package Length (Inches) 0.610
Package Length (mm) 15.50
Package Width (Inches) 0.433
Package Width (mm) 11.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

G1PM109N LF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL


G1PM109N LF 10/1000 BASE-T Quad Port Magnetics Transformer LP82458PNL
