Home > products > Discrete Magnetic Transformers > T1068 T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules LPB81068NL

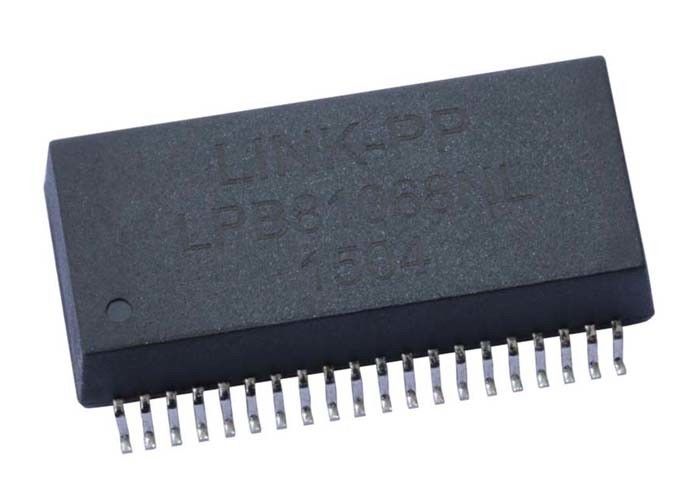

T1068 T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules LPB81068NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: T1068

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10/100base-t magnetics

,

ethernet transformer

Specification:
T1068
LINK-PP P/N:
LPB81068NL
Speed:
10/100 BASE-T
Number Of Ports:
Quad
Application:
Lan Ethernet(NoN PoE)
PIN Number:
16
Temperature:
0 TO +70℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
T1068
LINK-PP P/N:
LPB81068NL
Speed:
10/100 BASE-T
Number Of Ports:
Quad
Application:
Lan Ethernet(NoN PoE)
PIN Number:
16
Temperature:
0 TO +70℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
T1068 T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules LPB81068NL
T1068 T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules LPB81068NL

T1068 T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules LPB81068NL 0


LINK-PP Part Number LPB81068NL
Pulse Part Number T1068
Speed 10/100 BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 1.125
Package Length (mm) 28.58
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:2CT
Turns Ratio TX 1CT:1CT



Applications:



Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
