Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ATSC-1603I
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN: |
ATSC-1603I |
PIN TO PIN: |
LPB81144NLE |
Cores Per Port: |
2 |
Package: |
SMT |
PORT: |
Quad Port |
Temperature: |
- 40 TO + 85℃ |
PN: |
ATSC-1603I |
PIN TO PIN: |
LPB81144NLE |
Cores Per Port: |
2 |
Package: |
SMT |
PORT: |
Quad Port |
Temperature: |
- 40 TO + 85℃ |
1.Single Port Lan Transformer
2.ColiStructure: Toroidal
3.100base-t transformer
4.SMD, 16 pins

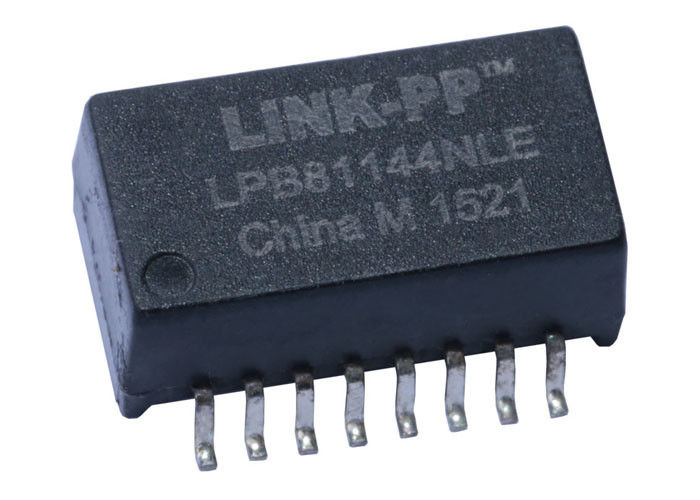

LINK-PP LPB81144NLE 100% Cross ATSC-1603I Allied
|
|
|
| T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules,SMD,Rohs | |
| LINK-PP Part Number | LPB81144NLE |
| Allied Part Number | ATSC-1603I |
| Speed | T1/CEPT/ISDN-PRI |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | - 40 TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 2 |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.20 |
| Package Length (Inches) | 0.500 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.366 |
| Package Width (mm) | 9.30 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:2.4CT |
