H6101FNL Dual Port SMD Gigabit Magnetic POE+ Transformer LP6080NL

China H6101FNL Dual Port SMD Gigabit Magnetic POE+ Transformer LP6080NL supplier

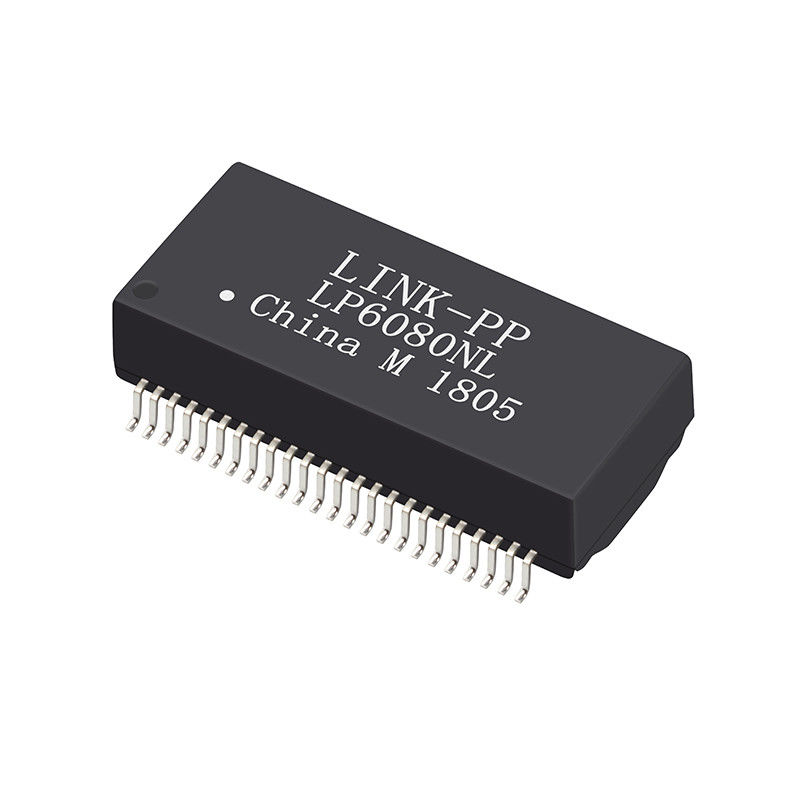

Large Image :  H6101FNL Dual Port SMD Gigabit Magnetic POE+ Transformer LP6080NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: H6101FNL

Payment & Shipping Terms:

Minimum Order Quantity: 2000/5000/10000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
Specifications: H6101FNL Pin To Pin: LP6080NL
Mounting: SMD Apllication: 100/1000base-T POE(+)
Dimension: 28x15.40x7.00mm Temperature: 0℃ TO + 70℃
Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

H6101FNL Dual Port SMD Gigabit Magnetic POE+ Transformer LP6080NL



Product Features:



  • LP6080NL Dual 1000Base-T POE Magnetic Transformer
  • IEEE802.3af/at Compliant
  • RoHS & UL Certificate
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Patented Open Frame Construction



Pin to Pin LP6080NL
Mounting Surface Mount
Family 100/1000M  POE/POE+ Magnetics
Transformer Type Isolation Transformer
Minimum Crosstalk -40@100MHz dB
Lead Style Gull Wing
Package Type SMD
Maximum OCL Inductance 0.35 mH
Maximum Isolation Voltage 1500 Vrms
Minimum CMRR -40@1MHz to 100MHz dB
Minimum Return Loss -10@100MHz dB
Turns Ratio 1:1
Operating Temperature -40 to 85 °C
Packaging Tape and Reel
Maximum Insertion Loss -1.1@1MHz to 100MHz dB
Product Length 28.00 mm
H6101FNL Dual Port SMD Gigabit Magnetic POE+ Transformer LP6080NL



  • Target Applications – embedded computer, Rapid Deployment, Portable Applications
  • Industrial Ethernet Modules and fmc board
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 1000 Base-TX of network cammeras
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • ISO9001,SGS,UL,CE,REACH
