30FB-26NL Module Single Port 1:1 10/100Base-TX Lan Transformer 24Pin LP42403NL

China 30FB-26NL Module Single Port 1:1 10/100Base-TX Lan Transformer 24Pin LP42403NL supplier

Large Image :  30FB-26NL Module Single Port 1:1 10/100Base-TX Lan Transformer 24Pin LP42403NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 30FB-26NL

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 30FB-26NL P/N: LP42403NL
Measure: 18.15mm L X 16.00mm W X6.25mm H Mounting: SMD
Ethernet: 10/100Base-TX X1 Samples: Free

30FB-26NL Module Single Port 1:1 10/100Base-TX Lan Transformer 24Pin LP42403NL
  • 10/100Base-TX Lan Transformer 24Pin LP42403NL
  • RoHS reflow temperature rating 245°C
  • Meets IEEE 802.3 specification
  • Some models offer AutoMDIX capability
  • Archivi Disponibili:PDF/3D/ISG/Stp/Step/Datasheet
Product Category: Audio Transformers / Signal Transformers
Manufacturer Specifications 30FB-26NL
LINK-PP Equivalent LP42403NL
Termination Style: SMD/SMT
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Number of Channels: Single
Product: LAN
Type: Module
Application: 10/100Base-TX
Length: 18.15 mm
Width: 16.00 mm
Height: 6.25 mm

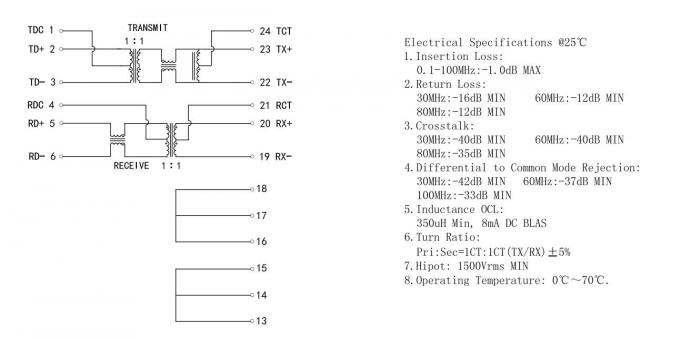

30FB-26NL Module Single Port 1:1 10/100Base-TX Lan Transformer 24Pin LP42403NL



NOTES:
1. Designed to support application,such as SOHO(ADSL modems),
    LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Maximun reflow temperature is 245℃ Max, 5 Sec
4. UL Certification: File Number E321120
