H1267NL 10/100Base-T Ethernet Single Port Transformer Surface Mounting LP42403NL

China H1267NL 10/100Base-T Ethernet Single Port Transformer Surface Mounting LP42403NL supplier

Large Image :  H1267NL 10/100Base-T Ethernet Single Port Transformer Surface Mounting LP42403NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1267NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T,Paypal, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN#: H1267NL Made In China: SM-LP42403NL
Interface: 10/100Mbps Samples: Available
Package: SMD Temperature: 0℃ TO 70℃

H1267NL 10/100Base-T Ethernet Single Port Transformer Surface Mounting LP42403NL



10/100 Base -T Magnetics Transformer Modules SMD,Rohs
LINK-PP Part Number LP42403NL
Cross Part Number H1267NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE

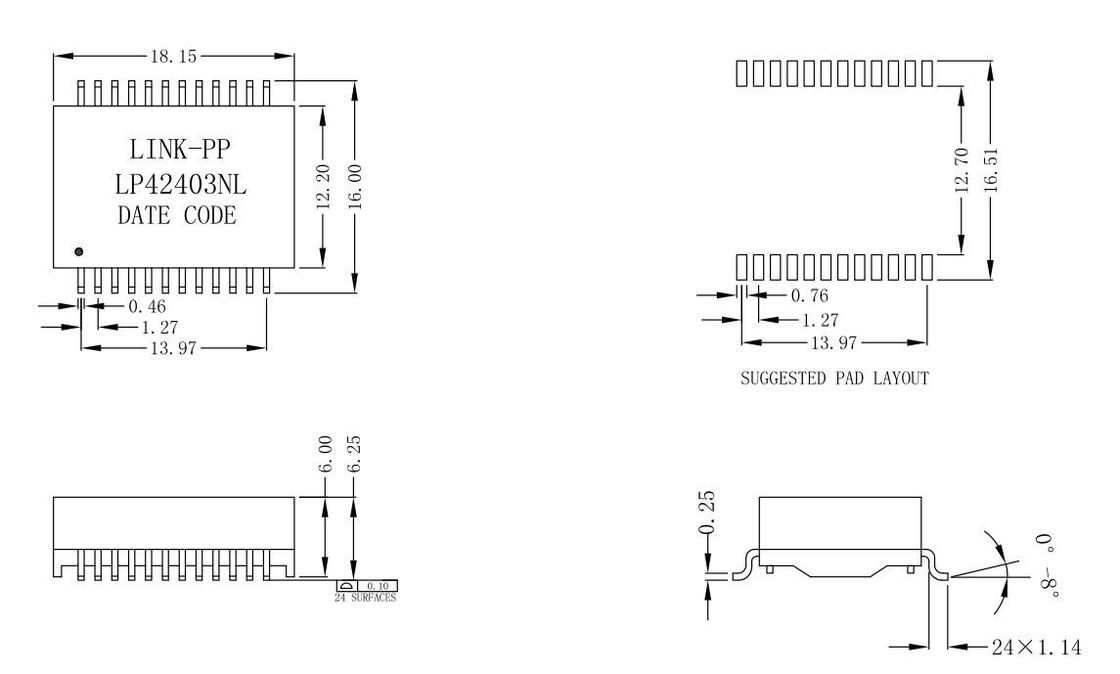

Package Height (Inches) 0.236
Package Height (mm) 6.00
Package Length (Inches) 0.715
Package Length (mm) 18.15
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications @25℃
1.Turns Ratio:
   TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
   0.1-100MHz: -1.0dB Max
3.Return Loss:
   30MHz: -16dB Min
   60MHz: -12dB Min
   80MHz:-12dB Min

4.Cross Talk:
   30MHz: -40dB Min
   60MHz: -40dB Min
   80MHz:-35dB Min
5.Common To Common Mode Rejection:
   30MHz: -42dB Min
   60MHz: -37dB Min
   100MHz:-33dB Min

6.Inductance OCL:

   350uH Min, 8mA DC BLAS
7.Hi-Pot:1500Vrms Min
8.Operating Temperature: 0℃~70℃.

H1267NL 10/100Base-T Ethernet Single Port Transformer Surface Mounting LP42403NL
