40SS1064ALF 10/100BASE-TX Quad Port Magnetic Transformer LP44008NL

China 40SS1064ALF 10/100BASE-TX Quad Port Magnetic Transformer LP44008NL supplier

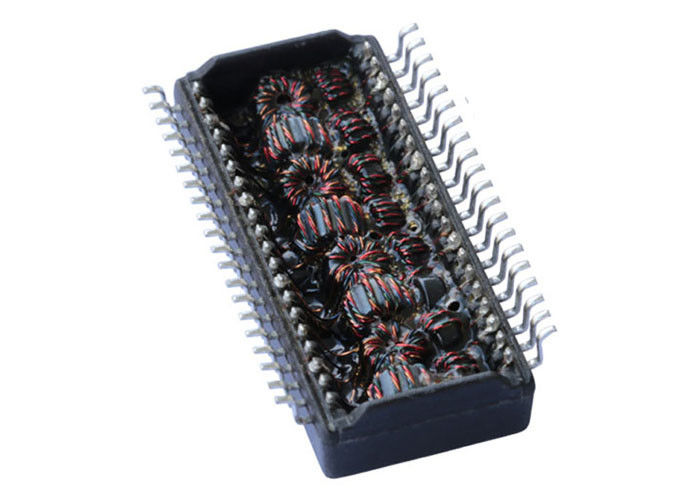

Large Image :  40SS1064ALF 10/100BASE-TX Quad Port Magnetic Transformer LP44008NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 40SS1064ALF

Payment & Shipping Terms:

Minimum Order Quantity: 3000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 40SS1064ALF P/N: LP44008NL
Measure: 28.58mm X 16.00mm X 6.60mm Mounting: SMT
Ethernet: 4 Port 10/100Mbps Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

40SS1064ALF 10/100BASE-TX Quad Port Magnetic Transformer LP44008NL



Audio Transformers / Signal Transformers 10/100Base-TX SMD 4Port
For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios

10/100BASE-TX QUAD PORT TRANSFORMER MODULES For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Alternated by LINK-PP
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX
Isolation Voltage 1500.0 V
Manufacturer Series LP44008NL
Mounting Feature SURFACE MOUNT
Number of Functions 4
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension 28.58mm X 16.00mm X 6.60mm
Primary Inductance 350.0 µH
Terminal Finish MATTE TIN
Turns Ratio (Np:Ns) 1:1; 1:1; 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO

40SS1064ALF 10/100BASE-TX Quad Port Magnetic Transformer LP44008NL
