Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: SG24002G / EG24A005S
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
SG24002G / EG24A005S |
Transformer Type: |
Ethernet Transformer |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
15.1mm L X 10mm W |
Mass Production: |
LP82440ANL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
SG24002G / EG24A005S |
Transformer Type: |
Ethernet Transformer |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
15.1mm L X 10mm W |
Mass Production: |
LP82440ANL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
SG24002G / EG24A005S |
Datasheet/Price/Specification/3D |

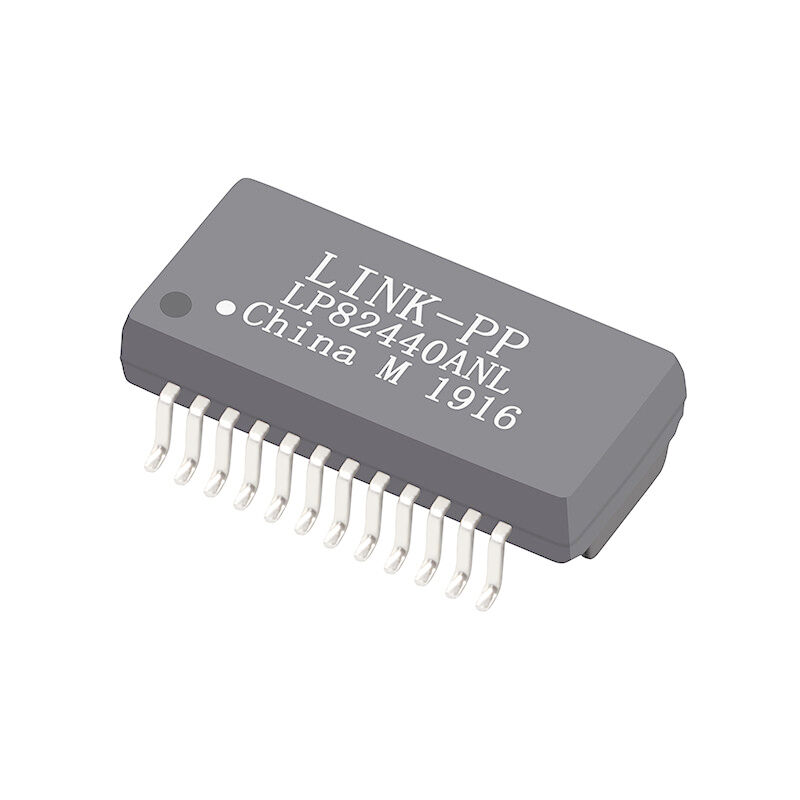

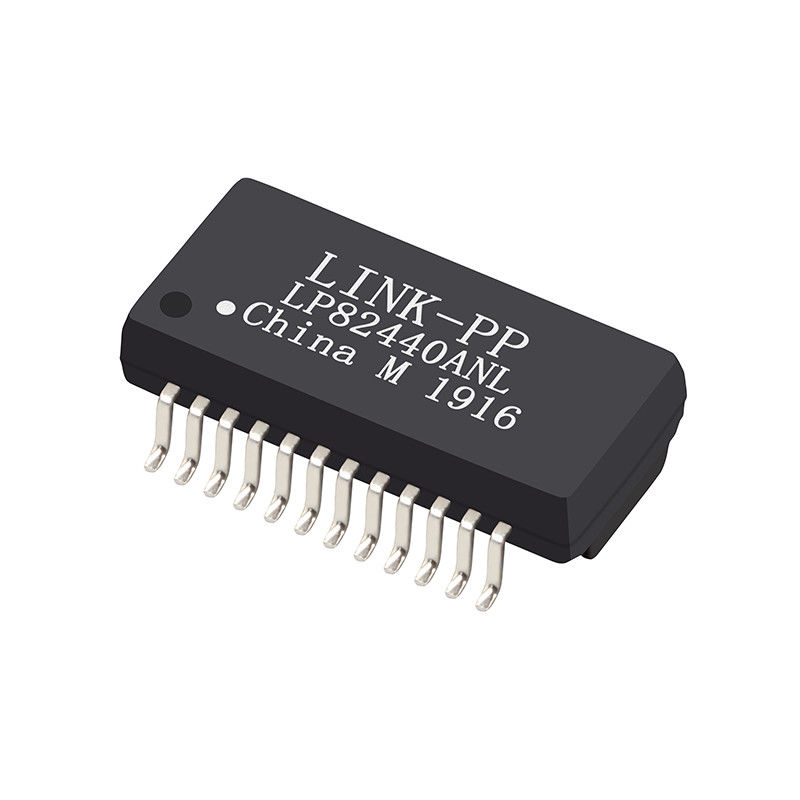

Gigabit Transformer |
Cross LP82440ANL |
| 1000 Base -T Single Port Transformer Magnetic Modules,SMD,Rohs | |
| LINK-PP Part Number: | LP82440ANL |
| Sunuprise Part Number: | SG24002G / EG24A005S |
| Speed: | 1000BASE-T |
| Number of Ports: | SINGLE |
| Application - LAN: | ETHERNET (NON PoE) |
| Package: | SMD |
| Temperature: | -40 TO +85 |
| AutomDX: | YES |
| Comment: | SAME AS NL VERSION |
| Configuration RX: | T,C,S |
| Configuration TX: | T,C,S |
| Construction: | OPEN FRAME |
| Cores Per Port: | 8 |
| Number of Ports: | SINGLE |
| Package Height (Inches): | 0.148 |
| Package Height (mm): | 3.76 |
| Package Length (Inches): | 0.594 |
| Package Length (mm): | 15.10 |
| Package Width (Inches): | 0.394 |
| Package Width (mm): | 10.0 |
| Turns Ratio RX: | 1CT:1CT |
| Turns Ratio TX: | 1CT:1CT |
| Pin To Pin LP82440ANL | |||
|---|---|---|---|
| SG24002G | G2401CG | EG24A005S | H5084NL |
| HX5084NL | 7490101120 | 749020023 | HR682480 |
| H5084NLT | GST5009 | GST5009 LF | H5084NL |
| XFGIB1006A | VT-1189SD | M3295NL | QT24A01 |
Reel Package: SPQ/800pcs, Qty-carton/4800pcs, Carton size/37*37*25cm, G.W-carton/7.2kg
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias current.
4.RoHS"NL" peak solder rating 255±5℃.
