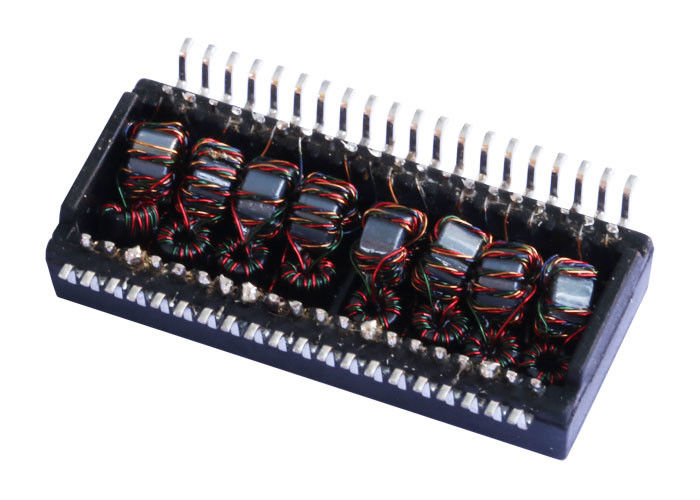

Q113677-XF0013 4x Port 10/100Base-Tx Magnetics 40pins Transformer Ethernet

China Q113677-XF0013 4x Port 10/100Base-Tx Magnetics 40pins Transformer Ethernet supplier

Large Image :  Q113677-XF0013 4x Port 10/100Base-Tx Magnetics 40pins Transformer Ethernet

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: Q113677-XF0013

Payment & Shipping Terms:

Minimum Order Quantity: 1000/2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: Q113677-XF0013 P/N: LPB40015ANLE
Measure: 28.58mm L X 16.00mm W X 5.84mm H Ethernet: 4 Port 10/100Mbps
Samples: Free Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

Q113677-XF0013 4x Port 10/100Base-Tx Magnetics 40pins Transformer Ethernet
  • RoHS peak reflow temperature rating: 245°C
  • Meets IEEE 802.3 specification H1060NLT  Specifications
  • Models designed to support four single or double-stacked RJ-45 connectors
  • Audio Transformers / Signal Transformers 10/100Base-TX SMD 4-Port
  • 10/100Base-TX Quad Port Transformer Modules Q113677-XF0013 Equivalent Cross
  • For Use with Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio

Series

 Quad Port 10/100Base-Tx Magnetic Transformers

Packaging

Tape & Reel (TR)

Part Status

Updated

Transformer Type

Isolation and Data Interface (Encapsulated)

Equivalent

LINK-PP LPB40015ANLE Series

Turns Ratio - Primary:Secondary

1 : 1 Transmitter, 1 : 1 Receiver

Mounting Type

Surface Mount

Size / Dimension

28.58mm L x 16.00mm W

Height - Seated (Max)

5.84mm

Weight

0.14 oz (3.99g)



T1/E1 Quad Port Line Interface Transformer Modules,SMD,Rohs
LINK-PP Part Number LPB40015ANL
Other Part Number Q113677-XF0013
Speed 10/100 BASE-T
Number of Ports Quad
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Number of Ports QUAD
Package Height (Inches) 0.230
Package Height (mm) 5.84
Package Length (Inches) 1.007
Package Length (mm) 25.58
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
