TX1193 SMT Lan Discrete Transformer Modules T1 / CEPT / ISDN - Pri Quad Port LPB81193NLE

China TX1193 SMT Lan Discrete Transformer Modules T1 / CEPT / ISDN - Pri Quad Port LPB81193NLE supplier

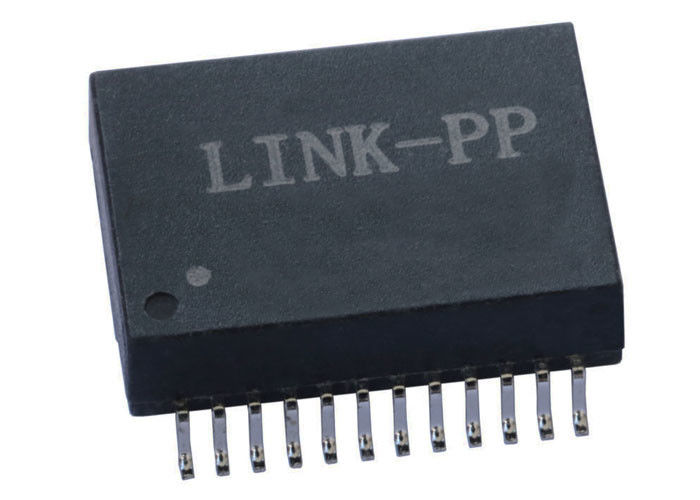

Large Image :  TX1193 SMT Lan Discrete Transformer Modules T1 / CEPT / ISDN - Pri Quad Port LPB81193NLE

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TX1193

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: TX1193 Cross Rf: LPB81193NLE
Magnetic: T1/CEPT/ISDN-Pri PIN: 24
Core: 8 Number Of Ports: QUAD

TX1193 T1/CEPT/ISDN-Pri Quad Port SMT Lan Lan Magnetics Transformer LPB81193NLE



Quick Details

TX1193 SMT Lan Discrete Transformer Modules T1 / CEPT / ISDN - Pri Quad Port LPB81193NLE 1. Quad Port Lan Transformer
2. LAN Transformer LPB81139NLE
3. T1/CEPT/ISDN-Pri transformer TX1193
4. SMD, 24 pins , 8 Channel
5. 16 years production experience
6. 100% test
7. Flexible delivery time



Description:



T1/CEPT/ISDN-PRI Quad Port Isolation Transformer Modules,SMD,Rohs
LINK-PP Part Number LPB81146NLE
Pulse Part Number TX1193
Speed T1/CEPT/ISDN-PRI
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.217
Package Height (mm) 5.51
Package Length (Inches) 0.690
Package Length (mm) 17.53
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:2CT
Turns Ratio TX 1CT:1CT



Applications:



Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
