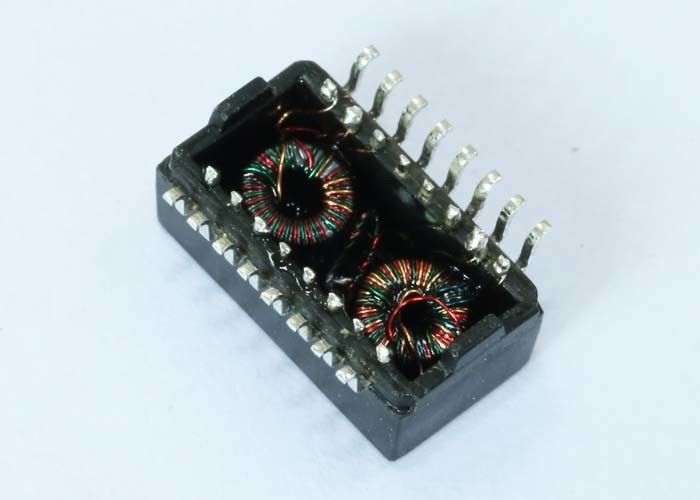

ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE

China ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE supplier

Large Image :  ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: ST-85865

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: ST-85865 Number Of Ports: Dual
Application: Lan Ethernet(NoN PoE) PIN Number: 16
Temperature: 0℃ TO +70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE



Quick Details



1. Dual Port Lan Transformer

2. LPB85507NLE Pin To Pin ST-85865

3. T1/E1/CEPT/ISDN-PRI transformer

4. SMD, 16 pins



LINK-PP LPB85507NLE 100% Cross ST-85865 Sumlink



Description:

T1/E1/CEPT/ISDN-PRI Dual Port Isolation Transformer Modules,SMD,Rohs
LINK-PP Part Number LPB85507NLE
Sumlink Part Number ST-85865
Speed T1/E1/CEPT/ISDN-PRI
Number of Ports DUAL
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 2
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.500
Package Length (mm) 12.70
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:2CT
Turns Ratio TX 1CT:2CT

ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time



ST-85865 Dual Port 16 Pins Lan Transformer With Ethernet Card LPB85507NLE
