P-68678 Dual Port Lan Isolation Transformer Modules 16 Pins LPB88678NL

China P-68678 Dual Port  Lan Isolation Transformer Modules 16 Pins LPB88678NL supplier

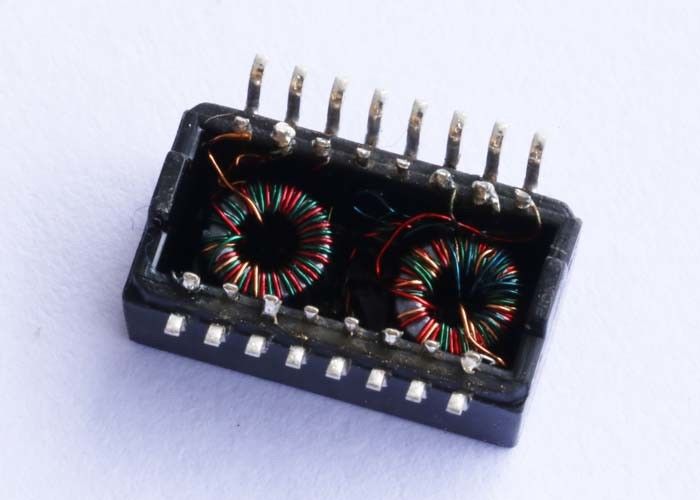

Large Image :  P-68678 Dual Port Lan Isolation Transformer Modules 16 Pins LPB88678NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: P-68678

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: P-68678 Cross Rf: P-68678 => LPB88678NL
Turns Ratio: 1 : 1 Mounting Type: Surface Mount
Dimension: 12.70mm L X 9.30mm W X 6.20mm H Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

P-68678 Dual Port Lan IsolationTransformer Modules 16 Pins LPB88678NL



Part number P-68678
Cross Part number LPB88678NL
Speed T1/E1/CEPT/ISDN-PRI
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 2
Package Height (mm) 6.20
Package Length (mm) 12.70
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

P-68678 Dual Port  Lan Isolation Transformer Modules 16 Pins LPB88678NL

P-68678 Dual Port Lan Isolation Transformer Modules 16 Pins LPB88678NL
