HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL

China HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL supplier
HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL supplier HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL supplier

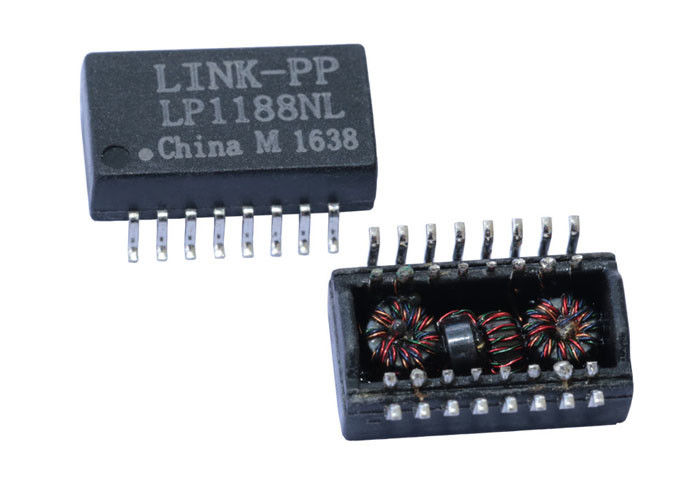

Large Image :  HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM1188FNL

Payment & Shipping Terms:

Minimum Order Quantity: 1000/2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: HM1188FNL Equivalent: LP1188NL
Mounting: SMT Ethernet: 1x10/100Base-Tx
Dielectric: 1500Vrms Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

HM1188FNL 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL
  • Equivalent to HM1188FNL
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • 10/100 Base-T Transformer Modules
  • LP1188NL Compatible of HM1188FNL  Equivalent Specifications
  • operating temperature:-40°C - +85°C
  • Hipot test: 1500Vrms 1min.
  • Auto MDIX capable



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type LINK-PP LP1188NL made In China
Application GENERAL PURPOSE
Isolation Voltage 1500 Vrms
Manufacturer Series HM1188FNL Cross
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1
Height 6.20 mm
Length 12.70 mm
Width 9.30 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO

HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL HM1188FNL 10/100 Base - Tx Magnetic Transformer With SMT Mounting LP1188NL



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,
1100 staff,
100% test
Flexible delivery time



HM1188FNL 10/100base-Tx Magnetic Transformer with SMT Mounting LP1188NL
